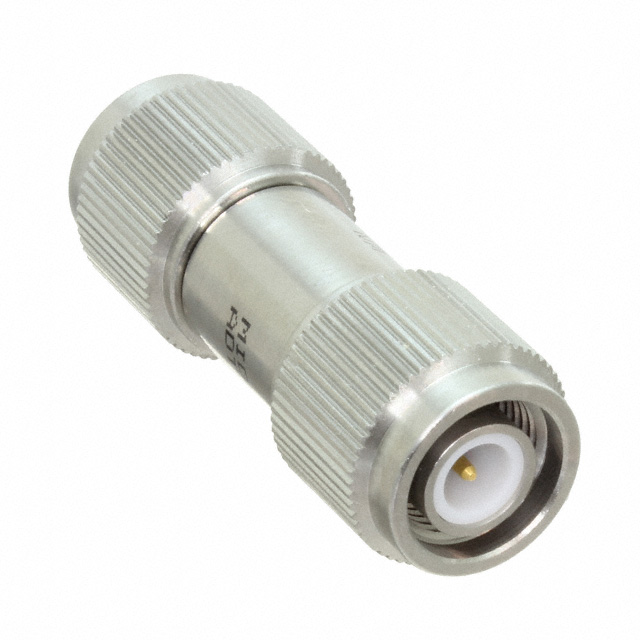

ADT-2597-MM-TNC-02

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT PLUG-PLUG TNC 50 OHM

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT PLUG-PLUG TNC 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2597-MM-TNC-02

Adapter Series	TNC to TNC
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT PLUG-PLUG TNC 50 OHM

Part	Mounting Type	Conversion Type	Convert To (Adapter End)	Style	Body Material	Adapter Series	Frequency - Max [Max]	Adapter Type	Dielectric Material	Center Contact Plating	Impedance	Center Gender	Center Contact Material
Cinch Connectivity Solutions Midwest Microwave ADT-2597-MM-TNC-02	Free Hanging (In-Line)	Same Series	Male Pin, TNC Plug	Straight	Stainless Steel	TNC to TNC	18 GHz	Plug to Plug	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Male to Male	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
