NST-1 1/2-BLACK

Active

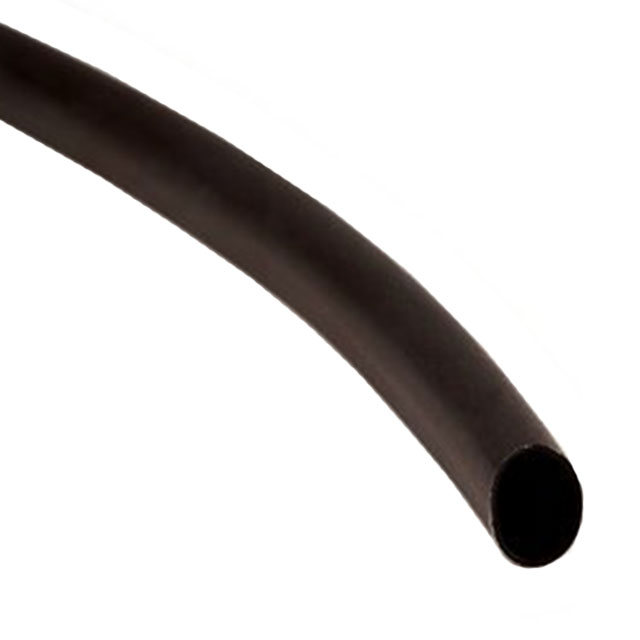

HEATSHRINK 1 1/2 BLACK 50'

Search across all available documentation for this part.

Active

HEATSHRINK 1 1/2 BLACK 50'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NST-1 1/2-BLACK	NST-1 Series

Color	Black	Black
Features	Abrasion Resistant, Self Extinguishing, Fluid Resistant, Solvent Resistant	Abrasion Resistant, Self Extinguishing, Fluid Resistant, Solvent Resistant
Inner Diameter - Recovered [diameter]	19.05 mm	12.7 - 22.23 mm
Inner Diameter - Recovered [diameter]	0.75 "	0.5 - 0.875 in
Inner Diameter - Supplied [diameter]	38.1 mm	25.4 - 44.45 mm
Inner Diameter - Supplied [diameter]	1.5 in	1 - 1.75 in
Length	15.2 m	15.2 m
Length	50 ft	50 ft
Length	-	30.5 m
Length	-	100 ft
Material	Neoprene	Neoprene
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-70 °C	-70 °C
Recovered Wall Thickness	0.095 in	0.07 - 0.107 in
Recovered Wall Thickness	2.41 mm	1.78 - 2.71 mm
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

MODIFIED POLYCHLOROPRENE BULK SPOOL

Part	Shrink Temperature	Material	Length	Length	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shrinkage Ratio	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Features	Shelf Life Start	Length [x]	Length [x]
3M NST-1 3/4-BLACK	135 C	Neoprene	15.2 m	50 ft	Black	1.75 in	44.45 mm	Tubing, Flexible	27 °C, 80 °F	10 °C	2 to 1	-70 °C	121 °C	0.107 in	2.71 mm	0.875 in	22.23 mm	60 Months	Abrasion Resistant, Fluid Resistant, Self Extinguishing, Solvent Resistant	Date of Manufacture
3M NST-1-BLACK	135 C	Neoprene			Black	1 in	25.4 mm	Tubing, Flexible	27 °C, 80 °F	10 °C	2 to 1	-70 °C	121 °C	0.07 "	1.78 mm	0.5 in	12.7 mm	60 Months	Abrasion Resistant, Fluid Resistant, Self Extinguishing, Solvent Resistant	Date of Manufacture	30.5 m	100 ft
3M NST-1 1/2-BLACK	135 C	Neoprene	15.2 m	50 ft	Black	1.5 in	38.1 mm	Tubing, Flexible	27 °C, 80 °F	10 °C	2 to 1	-70 °C	121 °C	0.095 in	2.41 mm	0.75 "	19.05 mm	60 Months	Abrasion Resistant, Fluid Resistant, Self Extinguishing, Solvent Resistant	Date of Manufacture
3M NST-1 1/4-BLACK	135 C	Neoprene	15.2 m	50 ft	Black	1.25 in	31.75 mm	Tubing, Flexible	27 °C, 80 °F	10 °C	2 to 1	-70 °C	121 °C	0.087 in	2.21 mm	0.625 in	15.88 mm	60 Months	Abrasion Resistant, Fluid Resistant, Self Extinguishing, Solvent Resistant	Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.81
LCSC	Piece	1	$ 537.88

General part information

Heat Shrink Tubing, Flexible 1.500" (38.10mm) 2 to 1 Black 50.0' (15.2m)
