Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7986ATR | A7986 Series |
|---|---|---|
| - | - | |
| Current - Output | 3 A | 3 A |
| Frequency - Switching | 250 kHz | 250 kHz |
| Function | Step-Down | Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 8-SOIC | 8-SOIC |
| Package / Case | 3.9 mm | 3.9 mm |

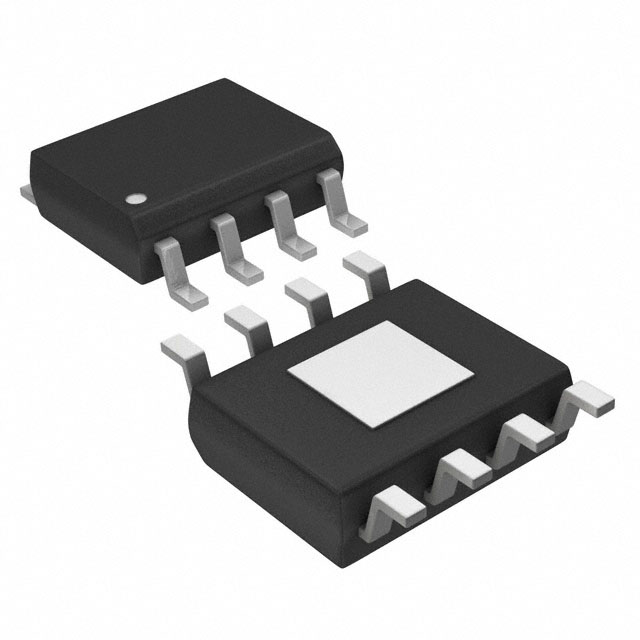

| Supplier Device Package | 8-HSOP-EP | 8-HSOP-EP |
| Synchronous Rectifier | False | False |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 38 V | 38 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output (Max) | 38 V | 38 V |
| Voltage - Output (Min/Fixed) | 0.6 V | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.87 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.43 | |||
| 100 | $ 2.07 | |||
| 250 | $ 1.95 | |||
| 500 | $ 1.70 | |||
| 1000 | $ 1.41 | |||
| Digi-Reel® | 1 | $ 2.87 | ||
| 10 | $ 2.58 | |||
| 25 | $ 2.43 | |||
| 100 | $ 2.07 | |||
| 250 | $ 1.95 | |||
| 500 | $ 1.70 | |||
| 1000 | $ 1.41 | |||
| Tape & Reel (TR) | 2500 | $ 1.31 | ||
| 5000 | $ 1.26 | |||
A7986 Series
3 A step-down switching regulator for automotive applications
| Part | Topology | Voltage - Output (Min/Fixed) | Synchronous Rectifier | Voltage - Input (Min) [Min] | Output Type | Package / Case | Package / Case | Package / Case | Voltage - Input (Max) [Max] | Supplier Device Package | Frequency - Switching | Function | Current - Output | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Number of Outputs | Mounting Type | Voltage - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics A7986ATR | |||||||||||||||||||
STMicroelectronics A7986ATR | Buck | 0.6 V | 4.5 V | Adjustable | 0.154 in | 8-SOIC | 3.9 mm | 38 V | 8-HSOP-EP | 250 kHz | Step-Down | 3 A | 150 °C | -40 °C | Positive | 1 | Surface Mount | 38 V |
Description
General part information
A7986 Series
The A7986A is a step-down switching regulator with a 3.7 A (min.) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions.
The input voltage can range from 4.5 V to 38 V, while the output voltage can be set starting from 0.6 V to VIN.
Requiring a minimum set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz.
