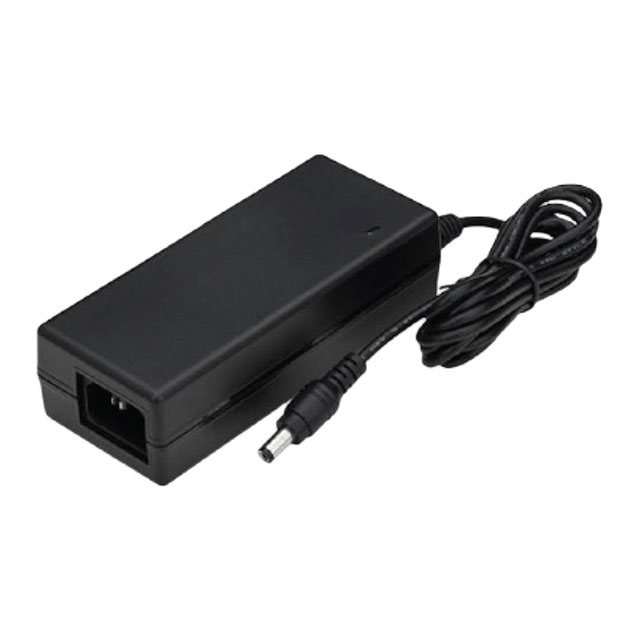

L6R60D-120-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 12V 65W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R60D-120-C14

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 12V 65W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L6R60D-120-C14	L6R60D Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cUL, FCC, UL	cUL, FCC, UL
Cord Length	1 m	1 m
Cord Length	39.4 "	39.4 "
Current - Output (Max)	-	7 A
Current - Output (Max) [Max]	5.41 A	1.35 - 5.41 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Desktop (Class I), Desktop (Class II)
Input Connector	IEC 320-C14	IEC 320-C6, IEC 320-C8, IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption	100 mW	100 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Power (Watts)	65 W	63 - 65 W
Region Utilized	International	International
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [x]	4.72 in	4.72 in
Size / Dimension [y]	51 mm	51 mm
Size / Dimension [y]	2.01 in	2.01 in
Size / Dimension [z]	34 mm	34 mm
Size / Dimension [z]	1.34 in	1.34 in
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	9 - 48 V
Weight	0.617 lb	0.617 lb
Weight	280 g	280 g

L6R60D Series

AC/DC DESKTOP ADAPTER 42V 65W

Part	Efficiency	Region Utilized	Power (Watts)	Weight	Weight	No Load Power Consumption	Voltage - Output	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Connector	Cord Length	Cord Length	Operating Temperature [Max]	Approval Agency	Standard Number	Applications	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Form	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Current - Output (Max)
Tri-Mag, LLC L6R60D-420-C6	Level VI	International	65 W	0.617 lb	280 g	100 mW	42 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C6	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	1.55 A
Tri-Mag, LLC L6R60D-480	Level VI	International	65 W	0.617 lb	280 g	100 mW	48 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C8	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class II)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	1.35 A
Tri-Mag, LLC L6R60D-180-C6	Level VI	International	65 W	0.617 lb	280 g	100 mW	18 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C6	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	3.61 A
Tri-Mag, LLC L6R60D-180-C8	Level VI	International	65 W	0.617 lb	280 g	100 mW	18 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C8	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class II)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	3.61 A
Tri-Mag, LLC L6R60D-360-C8	Level VI	International	65 W	0.617 lb	280 g	100 mW	36 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C8	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class II)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	1.81 A
Tri-Mag, LLC L6R60D-480-C14	Level VI	International	65 W	0.617 lb	280 g	100 mW	48 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	1.35 A
Tri-Mag, LLC L6R60D-300-C6	Level VI	International	65 W	0.617 lb	280 g	100 mW	30 VDC	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C6	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	2.16 A
Tri-Mag, LLC L6R60D-090-C6	Level VI	International	63 W	0.617 lb	280 g	100 mW	9 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C6	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in		7 A
Tri-Mag, LLC L6R60D-120-C14	Level VI	International	65 W	0.617 lb	280 g	100 mW	12 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	5.41 A
Tri-Mag, LLC L6R60D-420-C14	Level VI	International	65 W	0.617 lb	280 g	100 mW	42 V	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	IEC 320-C14	1 m	39.4 "	40 °C	cUL, FCC, UL	62368-1	ITE (Commercial)	Cord	90 VAC	264 VAC	Desktop (Class I)	51 mm	34 mm	2.01 in	1.34 in	120 mm	4.72 in	1.55 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.58
		5	$ 21.25
		10	$ 20.92
		25	$ 19.92
		50	$ 19.26
		100	$ 17.93
		250	$ 17.66

Description

General part information

L6R60D Series

12V 65 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
