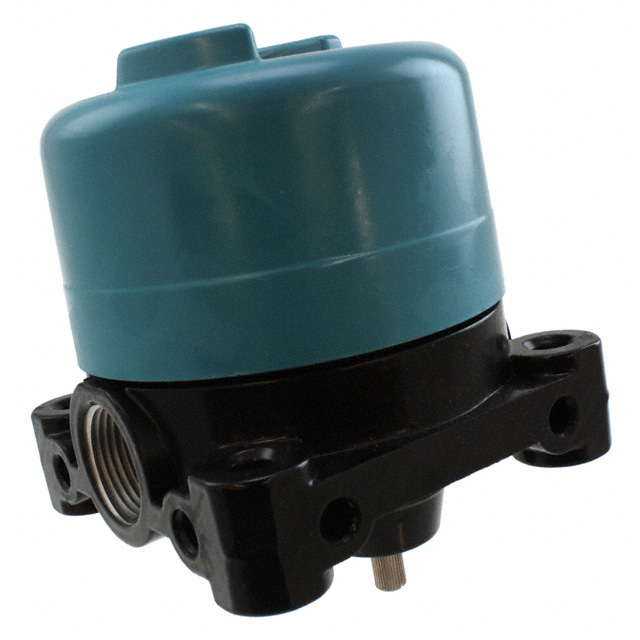

12CX200

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDTX2 20A 120V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDTX2 20A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT x 2 Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SWITCH LIMIT SPDTX2 20A 120V

Part	Overtravel	Voltage Rating - DC	Voltage Rating - AC	Ingress Protection	Operating Force	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function	Current Rating (Amps)	Actuator Type	Differential Travel	Pretravel	Mounting Type	Release Force	Features
Honeywell Sensing and Productivity Solutions 12CX200ME	90 °	125 VDC	120 V	IP66	50 gfm	Screw Terminal	-25 °C	85 °C	SPDT x 2	On-Mom	20 A, 500 mA	Side Rotary - No Lever	10 °	15 °	Chassis Mount
Honeywell Sensing and Productivity Solutions 12CX2AE	90 °	125 VDC	120 V	IP66	126 gfm	Screw Terminal	-25 °C	85 °C	SPDT x 2	On-Mom	20 A, 500 mA	Side Rotary - No Lever	10 °	15 °	Chassis Mount	11 gfm	Explosion Proof
Honeywell Sensing and Productivity Solutions 12CX200	90 °	125 VDC	120 V	IP66	50 gfm	Screw Terminal	-25 °C	85 °C	SPDT x 2	On-Mom	20 A, 500 mA	Side Rotary - No Lever	10 °	15 °	Chassis Mount		Explosion Proof
Honeywell Sensing and Productivity Solutions 12CX200E	90 °	125 VDC	120 V	IP66	50 gfm	Screw Terminal	-25 °C	85 °C	SPDT x 2	On-Mom	20 A, 500 mA	Side Rotary - No Lever	10 °	15 °	Chassis Mount
