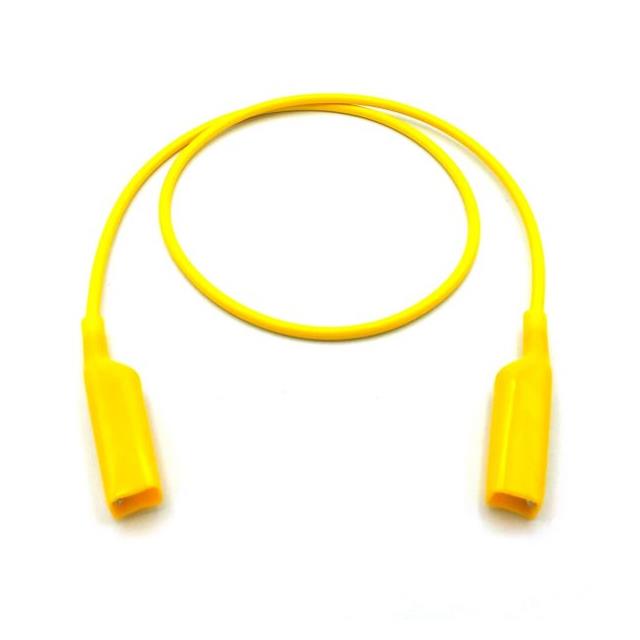

684-36YEL
ActiveE-Z-Hook
TEST LEAD GATOR TO GATOR 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
684-36YEL
ActiveE-Z-Hook
TEST LEAD GATOR TO GATOR 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 684-36YEL | 684-36 Series |
|---|---|---|
| 1st Connector | Insulated, Alligator Clip | Insulated, Alligator Clip |
| 2nd Connector | Alligator Clip, Insulated | Alligator Clip, Insulated |
| Cable Length | 36 in | 36 in |
| Cable Length | 914.4 mm | 914.4 mm |
| Contents | Yellow, 1 Lead | Yellow, 1 Lead, Multiple Colors |
| Contents | - | 10 Leads |
| Current Rating (Amps) | 4 A | 4 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 105 °C | 105 °C |
| Temperature Range | 221 °F | 221 °F |
| Voltage - Rated | 5 kV | 5 kV |
| Voltage - Rated | 5 kV | 5 kV |
| Wire Gauge | 18 AWG | 18 AWG |
684-36 Series
TEST LEAD GATOR TO GATOR 36"
| Part | Cable Length | Cable Length | 1st Connector | Temperature Range | Temperature Range | Contents | Current Rating (Amps) | Wire Gauge | Voltage - Rated | Voltage - Rated | Material - Insulation | 2nd Connector | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Z-Hook 684-36YEL | 36 in | 914.4 mm | Alligator Clip, Insulated | 105 °C | 221 °F | 1 Lead, Yellow | 4 A | 18 AWG | 5 kV | 5 kV | Poly-Vinyl Chloride (PVC) | Alligator Clip, Insulated | |
E-Z-Hook 684-36-S | 36 in | 914.4 mm | Alligator Clip, Insulated | 105 °C | 221 °F | Multiple Colors | 4 A | 18 AWG | 5 kV | 5 kV | Poly-Vinyl Chloride (PVC) | Alligator Clip, Insulated | 10 Leads |
E-Z-Hook 684-36GRN | 36 in | 914.4 mm | Alligator Clip, Insulated | 105 °C | 221 °F | 4 A | 18 AWG | 5 kV | 5 kV | Poly-Vinyl Chloride (PVC) | Alligator Clip, Insulated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.82 | |
| 100 | $ 7.43 | |||
| 250 | $ 7.04 | |||
| 500 | $ 6.64 | |||
Description
General part information
684-36 Series
36.0" (914.40mm) Alligator Clip, Insulated To Alligator Clip, Insulated Test Lead 5000VDC (5kV) 1 Lead, Yellow
