Technical Specifications
Parameters and characteristics for this part
| Specification | 02-619.011 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | DPDT |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP40 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 29.2 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 98.75 | |
| 10 | $ 85.16 | |||
| 25 | $ 80.26 | |||
| 50 | $ 76.74 | |||
| 100 | $ 73.37 | |||
02-619 Series
SWITCH PB DPDT 10A 400V
| Part | Circuit | Ingress Protection | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Type | Actuator Marking | Actuator Type | Mechanical Life | Voltage Rating - AC | Switch Function | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 02-619.011 | DPDT | IP40 | 29.2 mm | 21.2 mm | Screw Terminal | Illuminated, Standard | No Marking | Rectangular, Button (Not Included) | 1000000 Cycles | 400 V | On-On | Panel Mount, Front | 55 °C | -25 °C | 10 A |
Description
General part information
02-619 Series

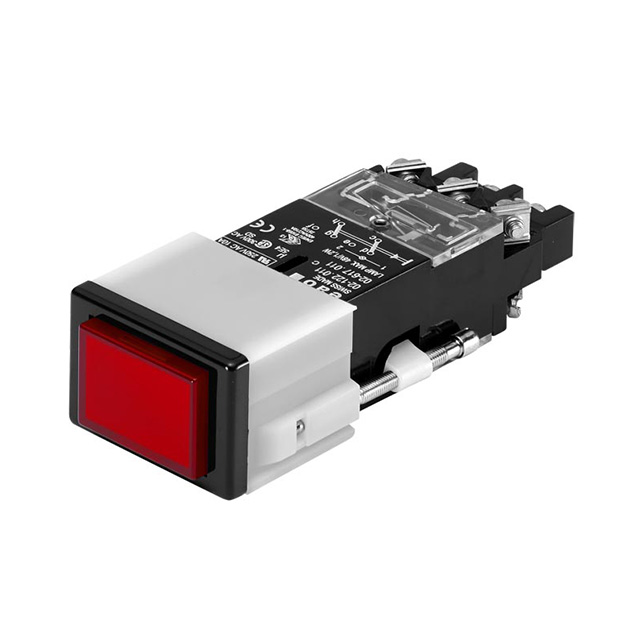

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front
