130G405032-E

Active

METZ CONNECT USA Inc.

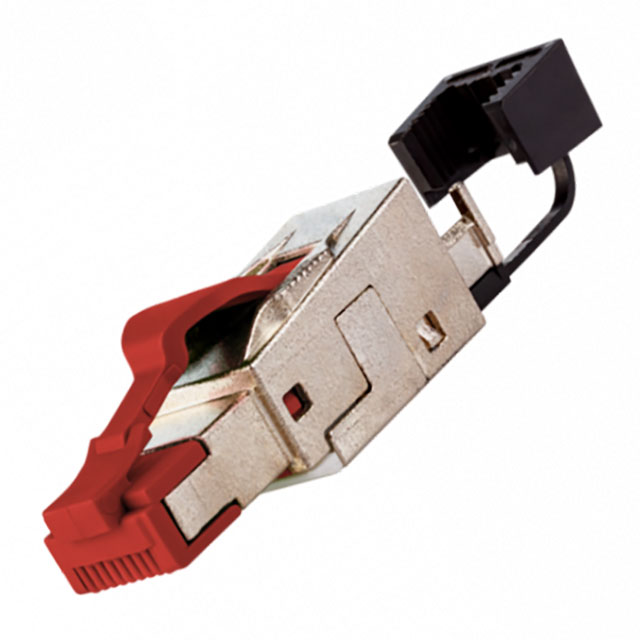

25G RJ45 FIELD PLUG PRO

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

25G RJ45 FIELD PLUG PRO

Technical Specifications

Parameters and characteristics for this part

Specification	130G405032-E

Cable Type	Round Cable, Solid, Stranded Wires
Color	Red
Connector Type	Plug
Contact Finish	Gold
Contact Material	Tin Bronze
Features	Strain Relief, Locking Hook, Housing
Housing Material	Zinc Die Cast
Length [x]	1.96 "
Length [x]	49.78 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

25G RJ45 FIELD PLUG PRO

Part	Contact Finish	Housing Material	Contact Material	Connector Type	Voltage Rating	Cable Type	Features	Color	Termination	Shielding	Length [x]	Length [x]	Number of Positions/Contacts	Wire Gauge [Min]	Wire Gauge [Max]
METZ CONNECT USA Inc. 130G405032-E	Gold	Zinc Die Cast	Tin Bronze	Plug	50 V	Round Cable, Solid, Stranded Wires	Housing, Locking Hook, Strain Relief	Red	IDC	Shielded	1.96 "	49.78 mm	8p8c (RJ45, Ethernet)	22 AWG	27 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded IDC
