925075-7
ActiveTE Connectivity AMP Connectors

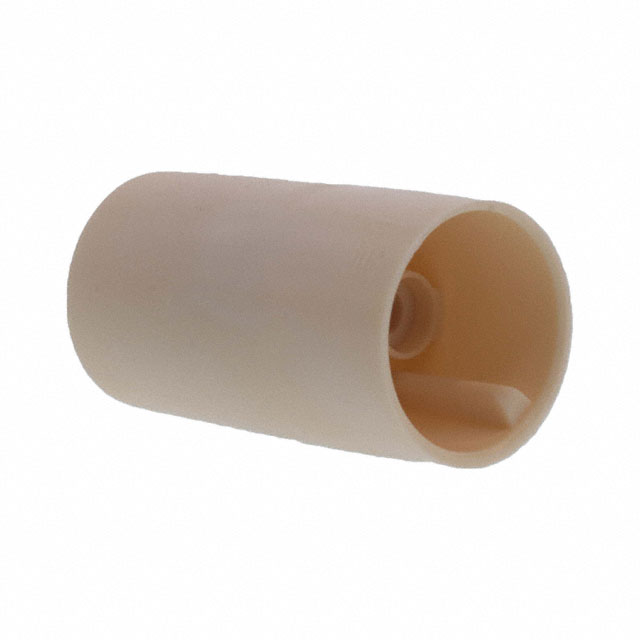

CONN CAP HSNG MALE 4POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
925075-7
ActiveTE Connectivity AMP Connectors
CONN CAP HSNG MALE 4POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 925075-7 | 925075 Series |
|---|---|---|
| Connector Type | Cap Housing | Cap Housing, Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Type | Crimp | Crimp |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | Natural | Natural |
| Material Flammability Rating | UL94 V-0 | UL94 V-0, UL94 V-2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Shell Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6, Polyamide (PA6), Nylon 6 |
| Shielding | Unshielded | Unshielded |
| Type | For Male Pins | For Male Pins |
925075 Series
CONN CAP HSNG MALE 4POS INLINE
| Part | Note | Housing Color | Fastening Type | Shielding | Shell Material | Contact Shape | Orientation | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Mounting Type | Number of Positions | Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 925075-7 | Contacts Not Included | Natural | Push-Pull | Unshielded | Polyamide (PA66), Nylon 6/6 | Circular | Keyed | Cap Housing | 105 ░C | -55 °C | UL94 V-0 | Free Hanging (In-Line) | 4 | For Male Pins | Crimp |
TE Connectivity AMP Connectors 925075-6 | Contacts Not Included | Natural | Push-Pull | Unshielded | Nylon 6, Polyamide (PA6) | Circular | Keyed | Receptacle Housing | 105 ░C | -55 °C | UL94 V-2 | Free Hanging (In-Line) | 4 | For Male Pins | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.95 | |||
| 50 | $ 0.94 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.60 | |||
Description
General part information
925075 Series
4 Position Circular Connector Cap Housing Free Hanging (In-Line)
