WM013RI,AL

Active

Serpac

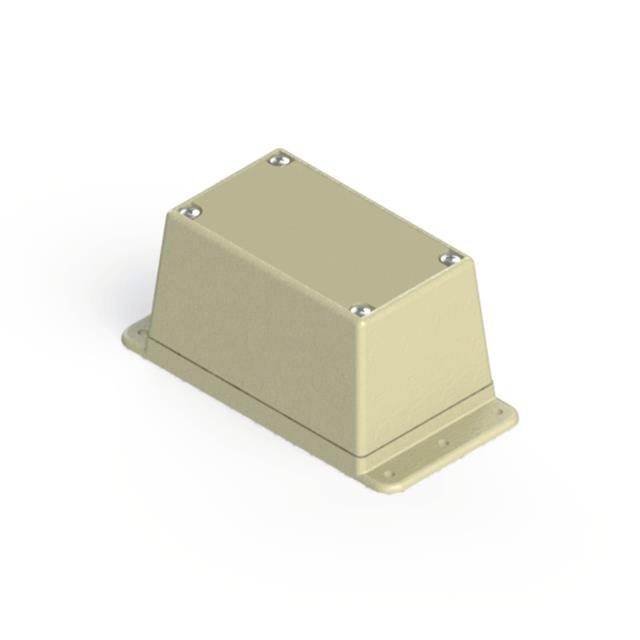

BOX ABS ALMOND 3.62"L X 2.27"W

Deep-Dive with AI

Search across all available documentation for this part.

WM013RI,AL

Active

Serpac

BOX ABS ALMOND 3.62"L X 2.27"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM013RI,AL	WM013 Series

Area (L x W)	53 cm²	52.3 - 53 cm²
Area (L x W)	8.22 in²	8.1 - 8.22 in²
Area (L x W)	-	53 cm²
Area (L x W)	-	8.22 in²
Area (L x W)	-	52.3 cm˛
Area (L x W)	-	8.1 in˛
Color	Almond	Black, Gray, Almond
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	2.1 in	2.1 in
Height [z]	53.34 mm	53.34 mm
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	3.62 in	3.6 - 3.62 in
Size / Dimension [x]	91.95 mm	91.44 - 91.95 mm
Size / Dimension [y]	57.66 mm	57.15 - 57.66 mm
Size / Dimension [y]	2.27 in	2.25 - 2.27 in
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	72.12 g	72.12 g
Weight	0.159 lb	0.159 lb

WM013 Series

BOX ABS BLACK 3.62"L X 2.27"W

Part	Features	Container Type	Area (L x W)	Area (L x W)	Material	Color	Ratings	Material Flammability Rating	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Thickness	Thickness	Design	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM013RI,BK	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Plastic, ABS	Black	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.62 in	57.66 mm	2.27 in	91.95 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013RI,GY	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box			Plastic, ABS	Gray	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.62 in	57.66 mm	2.27 in	91.95 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included	53 cm²	8.22 in²
Serpac WM013,GY	Mounting Flange, PCB Supports, Wall Mount	Box			Plastic, ABS	Gray	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.6 in	57.15 mm	2.25 in	91.44 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included			52.3 cm˛	8.1 in˛
Serpac WM013I,GY	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Plastic, ABS	Gray	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.6 in	57.15 mm	2.25 in	91.44 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013R,BK	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Plastic, ABS	Black	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.62 in	57.66 mm	2.27 in	91.95 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013I,AL	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Plastic, ABS	Almond	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.6 in	57.15 mm	2.25 in	91.44 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013R,AL	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Plastic, ABS	Almond	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.62 in	57.66 mm	2.27 in	91.95 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013RI,AL	Front Access, Mounting Flange, PCB Supports, Wall Mount	Box	53 cm²	8.22 in²	Plastic, ABS	Almond	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.62 in	57.66 mm	2.27 in	91.95 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013,AL	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Plastic, ABS	Almond	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.6 in	57.15 mm	2.25 in	91.44 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included
Serpac WM013,BK	Mounting Flange, PCB Supports, Wall Mount	Box	52.3 cm²	8.1 in²	Plastic, ABS	Black	IP40, NEMA 1	UL94 HB	2.1 in	53.34 mm	3.6 in	57.15 mm	2.25 in	91.44 mm	72.12 g	0.159 lb	2.54 mm	0.1 in	Cover Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.71

Description

General part information

WM013 Series

Box Plastic, ABS Almond Cover Included 3.620" L x 2.270" W (91.95mm x 57.66mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
