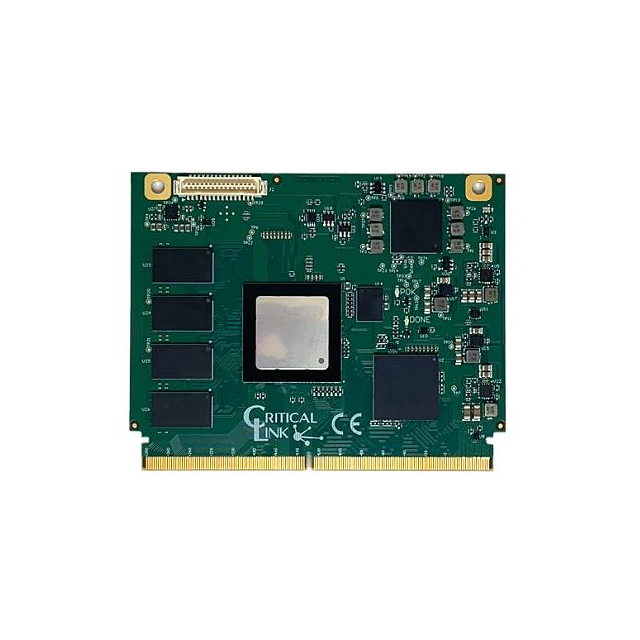

5728-PJ-4AA-RI

Active

Critical Link LLC

TEXAS INSTRUMENTS AM5728 SOM WIT

Search across all available documentation for this part.

Active

Critical Link LLC

TEXAS INSTRUMENTS AM5728 SOM WIT

Technical Specifications

Parameters and characteristics for this part

Specification	5728-PJ-4AA-RI

Co-Processor	Artix-7
Connector Type	Edge Connector - 310, Board-to-Board (BTB) - 100
Core Processor	ARM Cortex-A15
Flash Size	32 MB
Module/Board Type	FPGA Core, MPU
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
RAM Size	1 GB
Size / Dimension [x]	87.88 mm
Size / Dimension [x]	3.46 "
Size / Dimension [y]	69.34 mm
Size / Dimension [y]	2.73 in
Speed	1.5 GHz

TEXAS INSTRUMENTS AM5728 SOM WIT

Part	Flash Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Module/Board Type	Co-Processor	Connector Type	Speed
Critical Link LLC 5728-PJ-4AA-RI	32 MB	87.88 mm	69.34 mm	2.73 in	3.46 "	1 GB	70 °C	0 °C	ARM Cortex-A15	FPGA Core, MPU	Artix-7	Board-to-Board (BTB) - 100, Edge Connector - 310	1.5 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 413.31

General part information

- Embedded Module ARM Cortex-A15 Artix-7 1.5GHz 1GB 32MB
