TT11EGPC1

Active

TE Connectivity ALCOSWITCH Switches

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

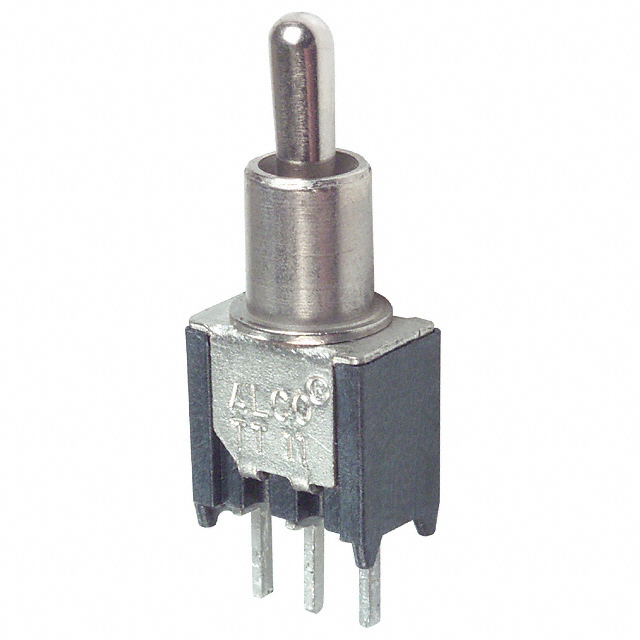

TT11EGPC1

Active

TE Connectivity ALCOSWITCH Switches

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TT11EGPC1	TT11E Series

Actuator Length	-	7.52 mm
Actuator Length [x]	5.61 mm	5.61 - 10.69 mm
Actuator Material	Brass, Nickel Plated	Brass, Nickel Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 1/4-40, 10-48
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	60000 Cycles	60000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	4.83 - 6.4 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

TT11E Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Current Rating (Amps)	Mounting Type	Actuator Type	Illumination	Voltage Rating - AC	Actuator Material	Actuator Length [x]	Termination Style	Features	Bushing Thread	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Length [z]
TE Connectivity ALCOSWITCH Switches TT11EGPC5T1/40	0.4 VA	Through Hole	Standard Round	Non-Illuminated	20 V	Brass, Nickel Plated	5.61 mm	PC Pin	Epoxy Sealed Terminals	Unthreaded	60000 Cycles	-30 ░C	85 °C	SPDT	20 V	On-Off-On
TE Connectivity ALCOSWITCH Switches TT11EGPC3	0.4 VA	Through Hole	Standard Round	Non-Illuminated	20 V	Brass, Nickel Plated	9.68 mm	PC Pin	Epoxy Sealed Terminals	Unthreaded	60000 Cycles	-30 ░C	85 °C	SPDT	20 V	On-Off-On
TE Connectivity ALCOSWITCH Switches TT11EGPC9T1/4	0.4 VA		Standard Round	Non-Illuminated	20 V	Brass, Nickel Plated	10.69 mm	PC Pin	Epoxy Sealed Terminals	1/4-40	60000 Cycles	-30 ░C	85 °C	SPDT	20 V	On-Off-On	6.4 mm
TE Connectivity ALCOSWITCH Switches TT11EGPC1	0.4 VA	Through Hole	Standard Round	Non-Illuminated	20 V	Brass, Nickel Plated	5.61 mm	PC Pin	Epoxy Sealed Terminals	Unthreaded	60000 Cycles	-30 ░C	85 °C	SPDT	20 V	On-Off-On
TE Connectivity ALCOSWITCH Switches TT11EGRA1	0.4 VA	Through Hole, Right Angle	Standard Round	Non-Illuminated	20 V	Brass, Nickel Plated	5.61 mm	PC Pin	Epoxy Sealed Terminals	Unthreaded	60000 Cycles	-30 ░C	85 °C	SPDT	20 V	On-Off-On
TE Connectivity ALCOSWITCH Switches TT11EGPC2T04	0.4 VA		Standard Round	Non-Illuminated	20 V	Brass, Nickel Plated		PC Pin	Epoxy Sealed Terminals	10-48	60000 Cycles	-30 ░C	85 °C	SPDT	20 V	On-Off-On	4.83 mm	7.52 mm
