806-022-ME18-85P1CA
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
806-022-ME18-85P1CA
ActiveGlenair
MIGHT MOUSE CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 806-022-ME18-85P1CA |
|---|---|
| Applications | Aerospace |
| Backshell Material, Plating | Aluminum |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 85, 85 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 85 |
| Shell Size - Insert [Min] | 18 |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5221.20 | |
| 4 | $ 3945.94 | |||
| 10 | $ 2466.22 | |||
| 20 | $ 1888.74 | |||
| 50 | $ 1443.66 | |||
| Bulk | 1 | $ 3437.37 | ||
806-022 Series
MIGHT MOUSE CONNECTOR
| Part | Shielding | Shell Material | Ingress Protection | Connector Type | Color | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Shell Finish | Applications | Backshell Material, Plating | Current Rating (Amps) | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Material | Primary Material | Orientation | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Glenair 806-022-ME18-85P1CA | Unshielded | Aluminum | Environment Resistant | Male Pins, Receptacle | Silver | Flange | -65 ░C | 200 °C | 85, 85 | Gold | 1.27 µm | 50 µin | Panel Mount, Through Hole | Electroless Nickel | Aerospace | Aluminum | 5 A | 18 | 85 | Copper Alloy | Metal | A | Solder |
Description
General part information
806-022 Series

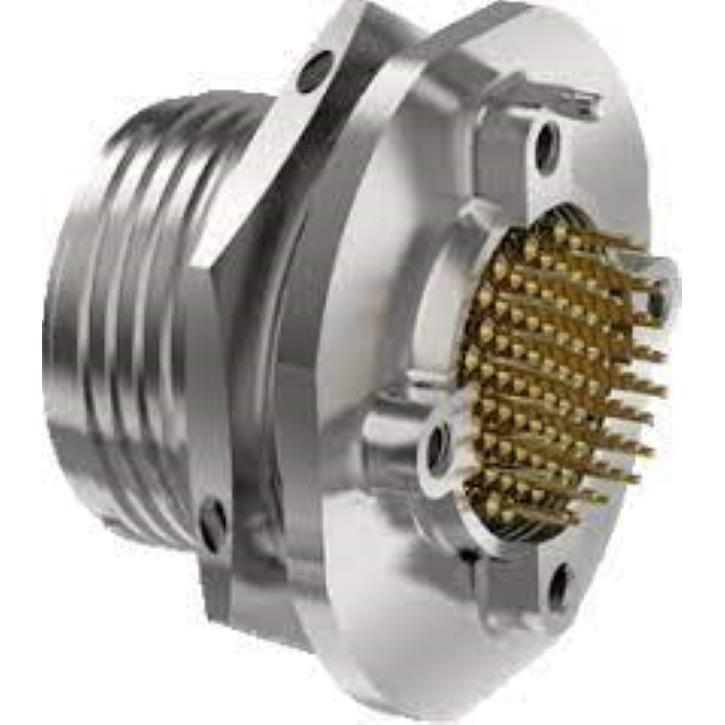

85 Position Circular Connector Receptacle, Male Pins Solder
Documents
Technical documentation and resources
No documents available
