QSLV-M(2-500)

Active

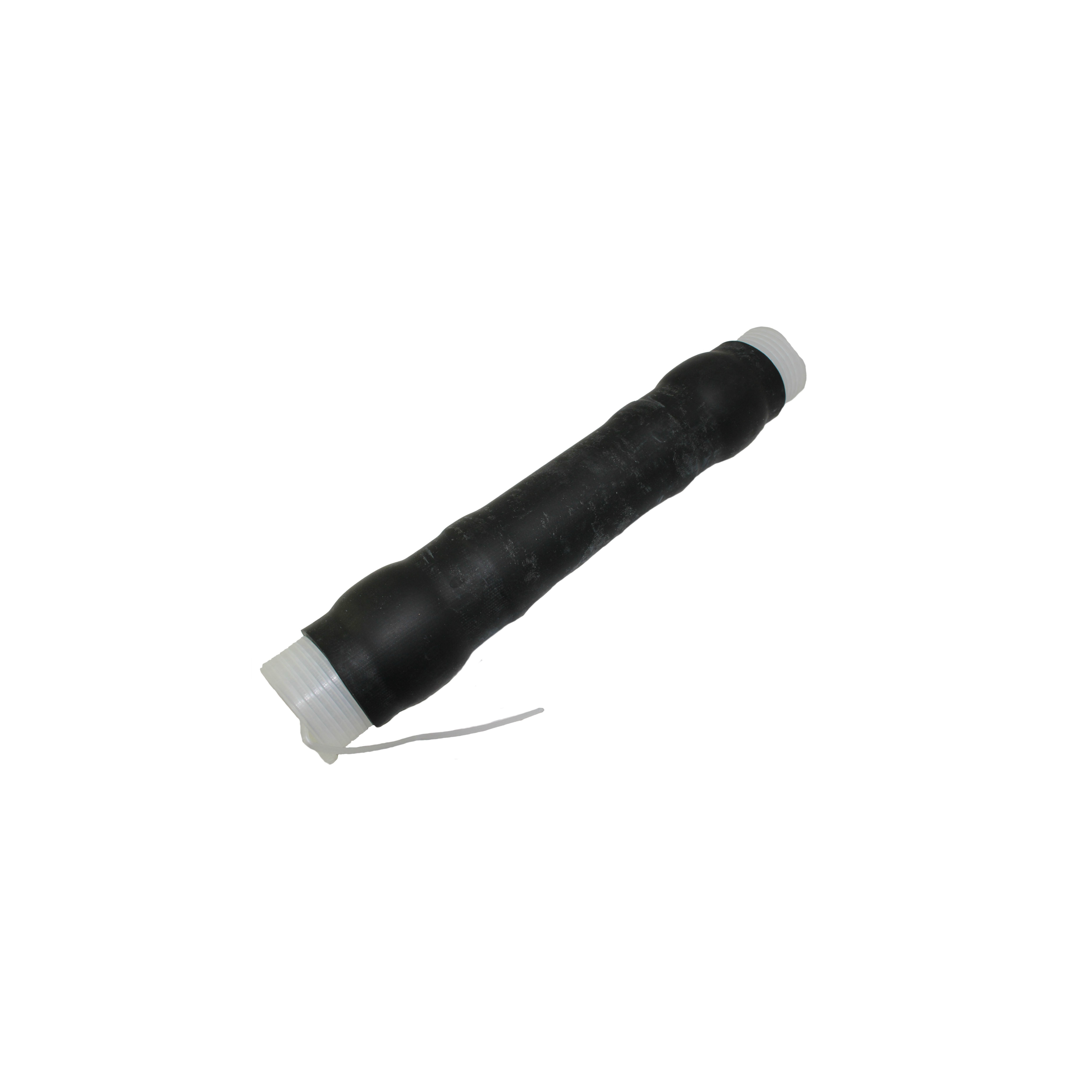

3M COLD SHRINK QUICK SPLICE LOW VOLTAGE QSLV-M, NON-SHIELDED, STANDARD, 10 PER CASE

Search across all available documentation for this part.

Active

3M COLD SHRINK QUICK SPLICE LOW VOLTAGE QSLV-M, NON-SHIELDED, STANDARD, 10 PER CASE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QSLV-M(2-500)	QSLV Series

Color	Black	Black
Diameter [diameter]	38.1 mm	17.5 - 38.1 mm
Diameter [diameter]	1.5 "	0.69 - 1.5 "
Length [x]	107.95 mm	63.5 - 107.95 mm
Length [x]	4.25 "	2.5 - 4.25 in
Length [x]	0.354 ft	0.354 - 2.496 in
Material	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Type	Tubing	Tubing

3M COLD SHRINK QUICK SPLICE LOW VOLTAGE QSLV-M(8-2/0), NON-SHIELDED, 1 KV, STANDARD, 10 PER CASE

Part	Material	Length [x]	Length [x]	Length [x]	Diameter [diameter]	Diameter [diameter]	Color	Type
3M QSLV-M(8-2/0)	Ethylene Propylene Terpolymer Rubber (EPDM)	2.5 in	63.5 mm	2.496 in	17.5 mm	0.69 "	Black	Tubing
3M QSLV-M(2-500)	Ethylene Propylene Terpolymer Rubber (EPDM)	4.25 "	107.95 mm	0.354 ft	38.1 mm	1.5 "	Black	Tubing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Cold Shrink Tubing 1.50" (38.1mm) X 0.354' (107.95mm, 4.25")
