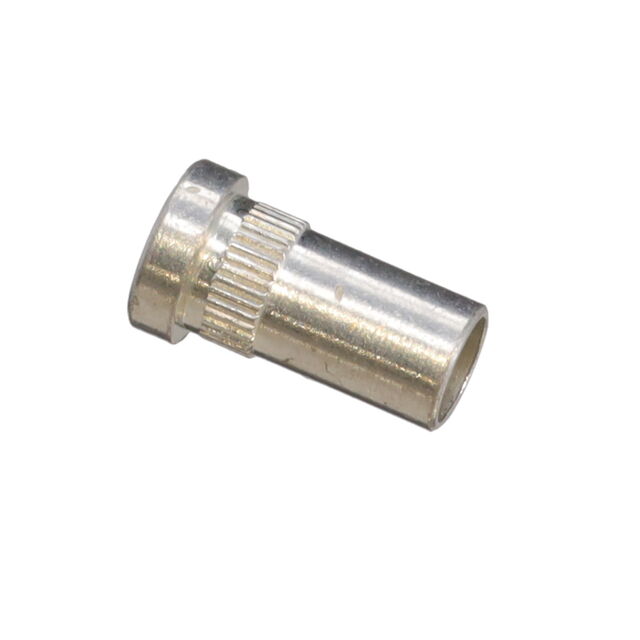

0366-0-15-01-13-01-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .048-.064 PRESSFIT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .048-.064 PRESSFIT

Technical Specifications

Parameters and characteristics for this part

Specification	0366-0-15-01-13-01-10-0

Accepts Pin Diameter [Max] [diameter]	1.63 mm
Accepts Pin Diameter [Max] [diameter]	0.064 "
Accepts Pin Diameter [Min] [diameter]	0.048 "
Accepts Pin Diameter [Min] [diameter]	1.22 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	3.48 mm
Flange Diameter [diameter]	0.137 "
Length - Overall [x]	6.35 mm
Length - Overall [x]	0.25 in
Mounting Hole Diameter [diameter]	2.77 mm
Mounting Hole Diameter [diameter]	0.109 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.088 in
Pin Hole Diameter [diameter]	2.24 mm
Tail Type	No Tail
Termination	Press-Fit

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0366-0-15-15-13-27-10-0	3.48 mm	0.137 "	Beryllium Copper	2.77 mm	0.109 in	1.63 mm	0.048 "	1.22 mm	0.064 "	-55 °C	125 °C	No Tail	6.35 mm	0.25 in	0.088 in	2.24 mm	Gold	Press-Fit	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0366-0-15-80-13-27-10-0	3.48 mm	0.137 "	Beryllium Copper	2.77 mm	0.109 in	1.63 mm	0.048 "	1.22 mm	0.064 "	-55 °C	125 °C	No Tail	6.35 mm	0.25 in	0.088 in	2.24 mm	Gold	Press-Fit	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0366-0-15-01-13-14-10-0	3.48 mm	0.137 "	Beryllium Copper	2.77 mm	0.109 in	1.63 mm	0.048 "	1.22 mm	0.064 "	-55 °C	125 °C	No Tail	6.35 mm	0.25 in	0.088 in	2.24 mm	Gold	Press-Fit	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0366-0-15-01-13-01-10-0	3.48 mm	0.137 "	Beryllium Copper	2.77 mm	0.109 in	1.63 mm	0.048 "	1.22 mm	0.064 "	-55 °C	125 °C	No Tail	6.35 mm	0.25 in	0.088 in	2.24 mm	Tin-Lead	Press-Fit	5.08 Ám	200 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) No Tail Press-Fit
