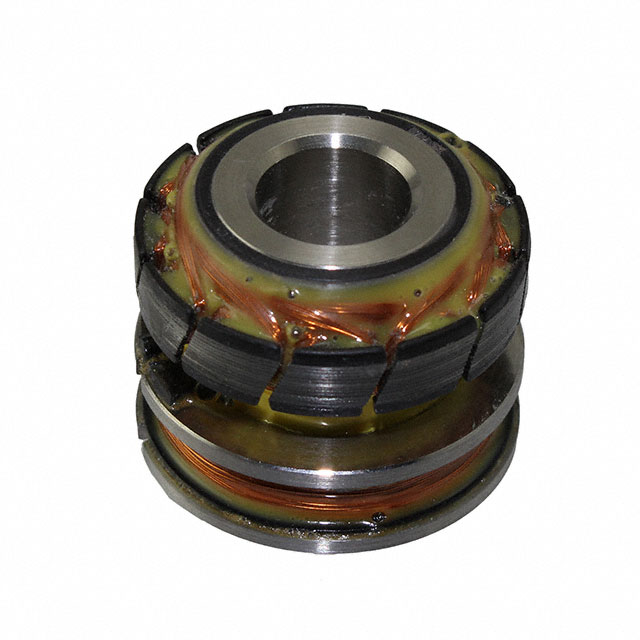

V23401-T1071-B101
ActiveTE Connectivity AMP Connectors
RESOLVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V23401-T1071-B101
ActiveTE Connectivity AMP Connectors
RESOLVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | V23401-T1071-B101 | V23401 Series |
|---|---|---|
| For Measuring | Angle | Angle |
| Mounting Type | Custom | Custom |
| Package / Case | Wire Leads, Ring | Wire Leads, Ring |
| Rotation Angle - Electrical, Mechanical [Max] | 20 ° | 20 ° |
| Rotation Angle - Electrical, Mechanical [Min] | 0 ° | 0 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 146.03 | |
V23401 Series
RESOLVER
| Part | Package / Case | Mounting Type | Rotation Angle - Electrical, Mechanical [Min] | Rotation Angle - Electrical, Mechanical [Max] | For Measuring |
|---|---|---|---|---|---|
TE Connectivity AMP Connectors V23401-T2715-B101 | Ring, Wire Leads | Custom | 0 ° | 20 ° | Angle |
TE Connectivity AMP Connectors V23401-T2072-B101 | Ring, Wire Leads | Custom | 0 ° | 20 ° | Angle |
TE Connectivity AMP Connectors V23401-T2071-B101 | Ring, Wire Leads | Custom | 0 ° | 20 ° | Angle |
TE Connectivity AMP Connectors V23401-T2074-B101 | Ring, Wire Leads | Custom | 0 ° | 20 ° | Angle |
TE Connectivity AMP Connectors V23401-T2079-B101 | Ring, Wire Leads | Custom | 0 ° | 20 ° | Angle |
TE Connectivity AMP Connectors V23401-T1071-B101 | Ring, Wire Leads | Custom | 0 ° | 20 ° | Angle |
Description
General part information
V23401 Series
Sensor Angle
