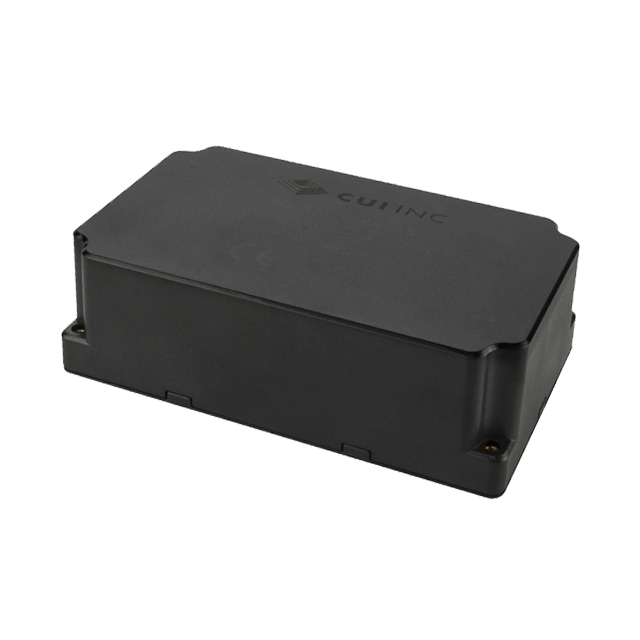

AE15-UW-S24

Obsolete

CUI Inc.

DC DC CONVERTER 24V 15W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 24V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 15W

Part	Package / Case	Number of Outputs	Features	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Power (Watts)	Voltage - Output 1	Efficiency	Type	Standard Number	Voltage - Input (Max) [Max]	Approval Agency
CUI Inc. AE15-UW-S12	5-DIP Module	1	OCP, OVP, SCP	4000 V	1.25 A	ITE (Commercial)	200 V	1.57 "	40 mm	125 mm	4.92 in	75 mm	2.95 in	Through Hole	15 W	12 V	71 %	Isolated Module	C22.2 No. 107.1-01	1500 V	CSA
CUI Inc. AE15-UW-S24	5-DIP Module	1	OCP, OVP, SCP	4000 V	625 mA	ITE (Commercial)	200 V	1.57 "	40 mm	125 mm	4.92 in	75 mm	2.95 in	Through Hole	15 W	24 V	74 %	Isolated Module	C22.2 No. 107.1-01	1500 V	CSA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 24V 625mA 200V - 1500V Input

Technical documentation and resources

No documents available
