TA48S015AF(T6L1,Q)

Obsolete

Toshiba Semiconductor and Storage

IC REG LINEAR 1.5V 1A 5HSIP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC REG LINEAR 1.5V 1A 5HSIP

Technical Specifications

Parameters and characteristics for this part

Specification	TA48S015AF(T6L1,Q)

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	1.7 mA
Current - Supply (Max) [Max]	20 mA
Mounting Type	Surface Mount
Number of Regulators	1
Output Configuration	Positive
Output Type	1.81 mOhm

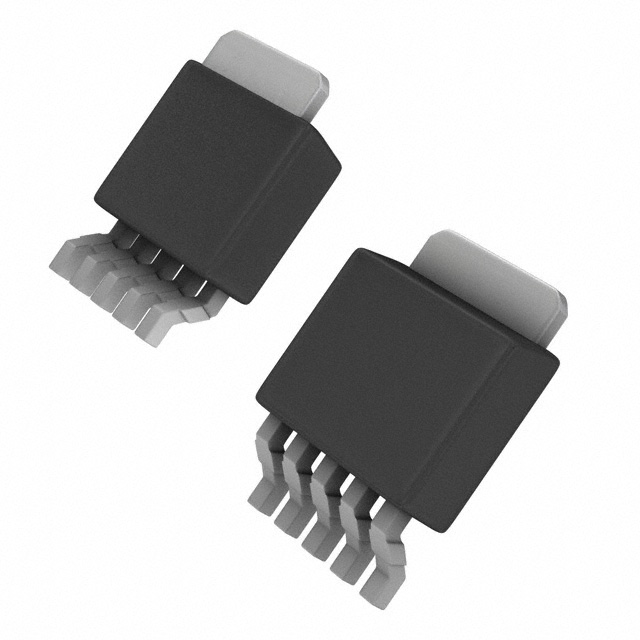

Package / Case	TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	67 dB
Supplier Device Package	5-HSIP
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Min/Fixed)	1.5 V
Voltage Dropout (Max) [Max]	1.9 V

Part	Output Configuration	PSRR	Current - Quiescent (Iq)	Output Type	Current - Supply (Max) [Max]	Protection Features	Current - Output	Package / Case	Supplier Device Package	Control Features	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Mounting Type	Number of Regulators
Toshiba Semiconductor and Storage TA48S015AF(T6L1,Q)	Positive	67 dB	1.7 mA	1.81 mOhm	20 mA	Over Current Over Temperature	1 A	TO-252-6 DPAK (5 Leads + Tab)	5-HSIP	Enable	1.9 V	1.5 V	16 V	Surface Mount	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.83

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1A 5-HSIP
