0328-0-15-80-34-14-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0328-0-15-80-34-14-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.31 mm
Flange Diameter [diameter]	0.091 in
Length - Overall [x]	0.206 "
Length - Overall [x]	5.23 mm
Mounting Hole Diameter [diameter]	2.01 mm
Mounting Hole Diameter [diameter]	0.079 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	4.57 mm
Socket Depth	0.18 in
Tail Type	No Tail
Termination	Press-Fit, Hex

Part	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish
Mill-Max Manufacturing Corp. 0328-0-15-01-34-27-10-0	0.76 Ám	30 Áin	0.206 "	5.23 mm	4.57 mm	0.18 in	Press-Fit Hex	-55 °C	125 °C	2.01 mm	0.079 in	Beryllium Copper	1.63 mm	0.064 in	No Tail	0.81 mm 1.17 mm	0.046 in	0.032 "	2.31 mm	0.091 in	Gold
Mill-Max Manufacturing Corp. 0328-0-15-15-34-27-10-0	0.76 Ám	30 Áin	0.206 "	5.23 mm	4.57 mm	0.18 in	Press-Fit Hex	-55 °C	125 °C	2.01 mm	0.079 in	Beryllium Copper	1.63 mm	0.064 in	No Tail	0.81 mm 1.17 mm	0.046 in	0.032 "	2.31 mm	0.091 in	Gold
Mill-Max Manufacturing Corp. 0328-0-15-80-34-80-10-0	5.08 Ám	200 Áin	0.206 "	5.23 mm	4.57 mm	0.18 in	Press-Fit Hex	-55 °C	125 °C	2.01 mm	0.079 in	Beryllium Copper	1.63 mm	0.064 in	No Tail	0.81 mm 1.17 mm	0.046 in	0.032 "	2.31 mm	0.091 in	Tin
Mill-Max Manufacturing Corp. 0328-0-15-80-34-14-10-0	0.25 Ám	10 Áin	0.206 "	5.23 mm	4.57 mm	0.18 in	Press-Fit Hex	-55 °C	125 °C	2.01 mm	0.079 in	Beryllium Copper	1.63 mm	0.064 in	No Tail	0.81 mm 1.17 mm	0.046 in	0.032 "	2.31 mm	0.091 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

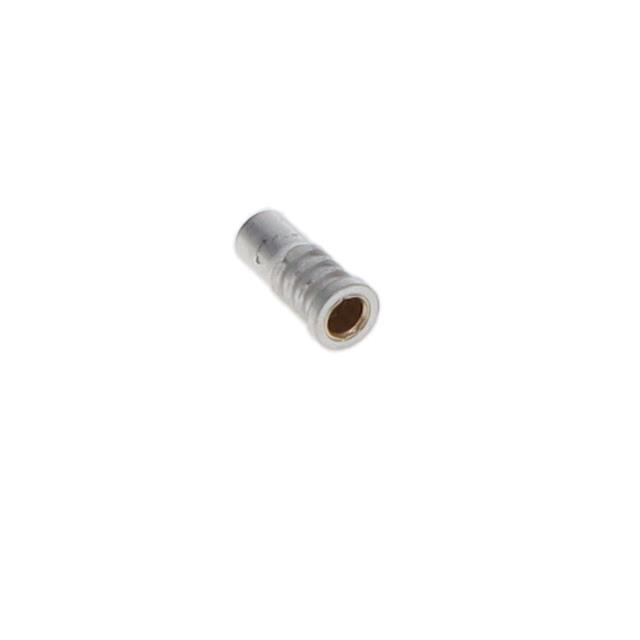

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Press-Fit, Hex
