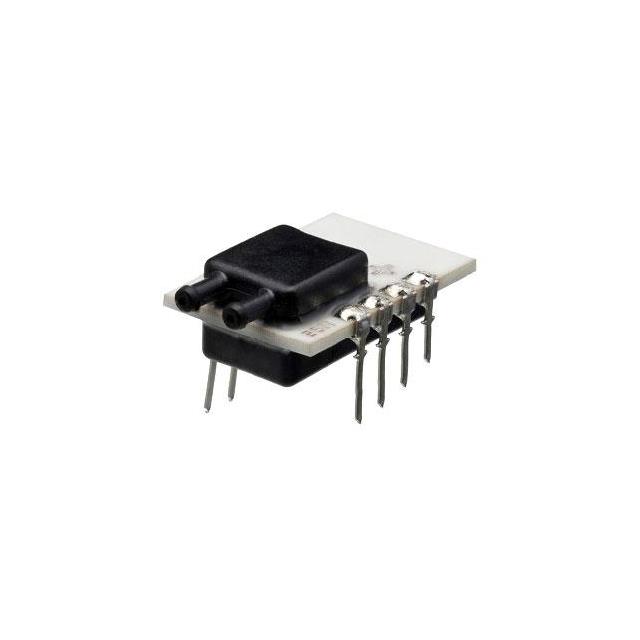

P1K-2B-2X16PA

Obsolete

Sensata Technologies

SENSOR 0.07PSI 4V

Search across all available documentation for this part.

Obsolete

Sensata Technologies

SENSOR 0.07PSI 4V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Operating Pressure	Operating Pressure	Features	Output [Min]	Output [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Port Style	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]
Sensata Technologies P1K-2-2X16PA	8-DIP Module	0.07 PSI	0.5 kPa	Temperature Compensated	0.25 V	4 V	Analog Voltage	85 °C	-20 C	0.25 %	Board Mount	4.75 V	5.25 V	Through Hole	Barbed	PC Pin
Sensata Technologies P1K-2B-2X16PA	8-DIP Module			Temperature Compensated	0.25 V	4 V	Analog Voltage	85 °C	-20 C	0.25 %	Board Mount	4.75 V	5.25 V	Through Hole	Barbed	PC Pin	1 PSI	-1 kPa	1 kPa	-1 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor -0.07PSI ~ 0.07PSI (-0.50kPa ~ 0.50kPa) 0.25 V ~ 4 V 8-DIP Module

Technical documentation and resources

No documents available
