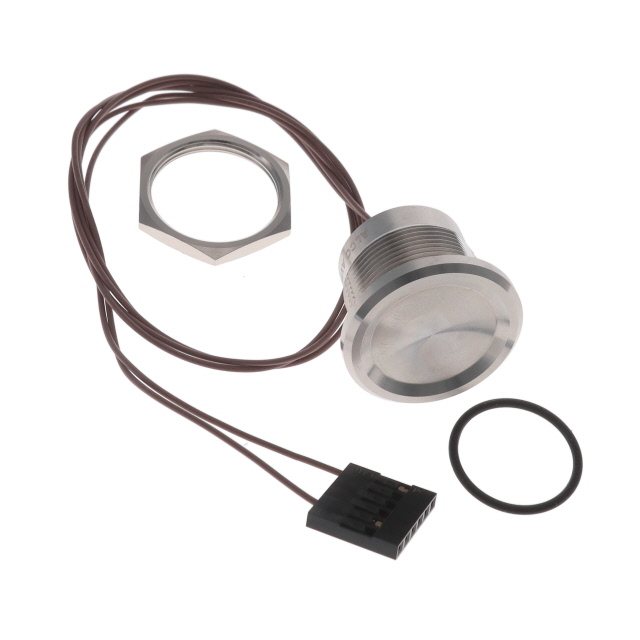

AVP22MS04C000T5A04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NO 1A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AVP22MS04C000T5A04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NO 1A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVP22MS04C000T5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Electrical Life	50000000 Cycles
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	Off-Mom
Type	Anti-Vandal, Piezo
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

ALCOSWITCH AVP22 Series

Part	Mounting Type	Electrical Life	Circuit	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Voltage Rating - DC	Actuator Type	Illumination Type, Color	Voltage Rating - AC	Ingress Protection	Color - Actuator/Cap	Actuator Marking	Switch Function
TE Connectivity Raychem Cable Protection AVP22MAIBFE0DT5A04	Panel Mount Front	50000000 Cycles	SPST-NO	Anti-Vandal Illuminated Piezo	22.2 mm	50000000 Cycles	24 V	Button Flush Round	Blue Green LED Red	24 V	IP68 - Dust Tight Waterproof	Silver	No Marking	Off-Mom
TE Connectivity Raychem Cable Protection AVP22MS04CE0DT5A04	Panel Mount Front	50000000 Cycles	SPST-NO	Anti-Vandal Illuminated Piezo	22.2 mm	50000000 Cycles	24 V	Button Flush Round	Blue Green LED Red	24 V	IP68 - Dust Tight Waterproof	Silver	No Marking	Off-Mom
TE Connectivity Raychem Cable Protection AVP22MAIOCE0DT5A04	Panel Mount Front	50000000 Cycles	SPST-NO	Anti-Vandal Illuminated Piezo	22.2 mm	50000000 Cycles	24 V	Button Flush Round	Blue Green LED Red	24 V	IP68 - Dust Tight Waterproof	Silver	No Marking	Off-Mom
TE Connectivity Raychem Cable Protection AVP22MAIOC000T5A04	Panel Mount Front	50000000 Cycles	SPST-NO	Anti-Vandal Piezo	22.2 mm	50000000 Cycles	24 V	Button Flush Round		24 V	IP68 - Dust Tight Waterproof	Silver	No Marking	Off-Mom
TE Connectivity Raychem Cable Protection AVP22MAIBCE0DT5A04	Panel Mount Front	50000000 Cycles	SPST-NO	Anti-Vandal Illuminated Piezo	22.2 mm	50000000 Cycles	24 V	Button Flush Round	Blue Green LED Red	24 V	IP68 - Dust Tight Waterproof	Silver	No Marking	Off-Mom
TE Connectivity Raychem Cable Protection AVP22MS04C000T5A04	Panel Mount Front	50000000 Cycles	SPST-NO	Anti-Vandal Piezo	22.2 mm	50000000 Cycles	24 V	Button Flush Round		24 V	IP68 - Dust Tight Waterproof	Silver	No Marking	Off-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.25
		10	$ 57.14
		25	$ 53.86
		50	$ 51.50
		100	$ 49.24

Description

General part information

ALCOSWITCH AVP22 Series

Pushbutton Switch SPST-NO Piezo, Anti-Vandal Panel Mount, Front

Documents

Technical documentation and resources
