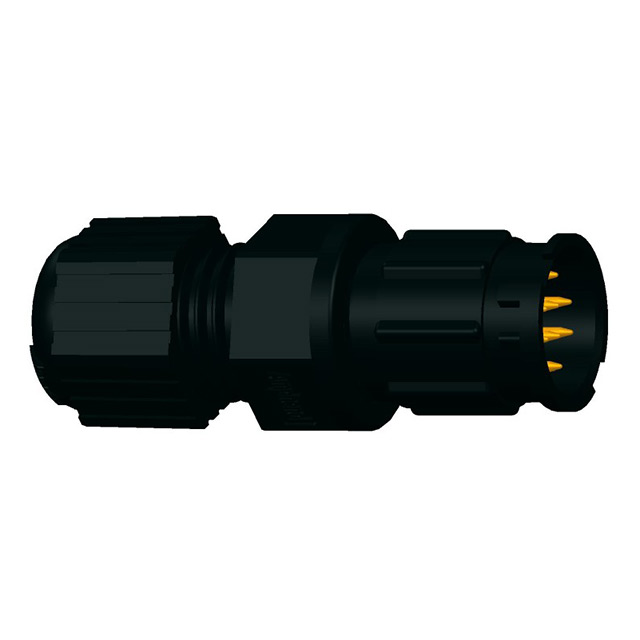

BU-12BMMA-LL7001

Active

Amphenol LTW

CONN RCPT MALE 12P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 12P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BU-12BMMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

Part	Contact Finish - Mating	Shell Material	Mounting Type	Features	Ingress Protection	Primary Material	Contact Material	Fastening Type	Color	Insert Material	Orientation	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shielding	Current Rating (Amps)	Connector Type	Backshell Material, Plating
Amphenol LTW BU-12BMMA-LL7001	Gold	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Backshell	IP67 - Dust Tight Waterproof	Plastic	Copper Alloy	Bayonet Lock	Black	Polyamide (PA) Nylon Glass Filled	Keyed	B	-40 °C	105 ░C	12	Unshielded	2 A	Male Pins Receptacle	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder Cup
