IR204/H60

Active

Everlight Electronics Co Ltd

EMITTER IR 940NM 100MA RADIAL

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

EMITTER IR 940NM 100MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Wavelength	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Orientation	Viewing Angle	Radiant Intensity (Ie) Min @ If
Everlight Electronics Co Ltd IR204C/H16/L10	Through Hole	940 nm	100 mA	85 °C	-40 °C	Infrared (IR)	Radial	Top View	50 °
Everlight Electronics Co Ltd IR204/H16/L10	Through Hole	940 nm	100 mA	85 °C	-40 °C	Infrared (IR)	Radial	Top View	50 °
Everlight Electronics Co Ltd IR204-A	Through Hole	940 nm	100 mA	85 °C	-40 °C	Infrared (IR)	Radial	Top View	35 °	4 mW/sr
Everlight Electronics Co Ltd IR204C-A	Through Hole	940 nm	100 mA	85 °C	-40 °C	Infrared (IR)	Radial	Top View	35 °	4 mW/sr
Everlight Electronics Co Ltd IR204/H60	Through Hole	940 nm	100 mA	85 °C	-40 °C	Infrared (IR)	Radial	Top View	50 °	4 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.13

General part information

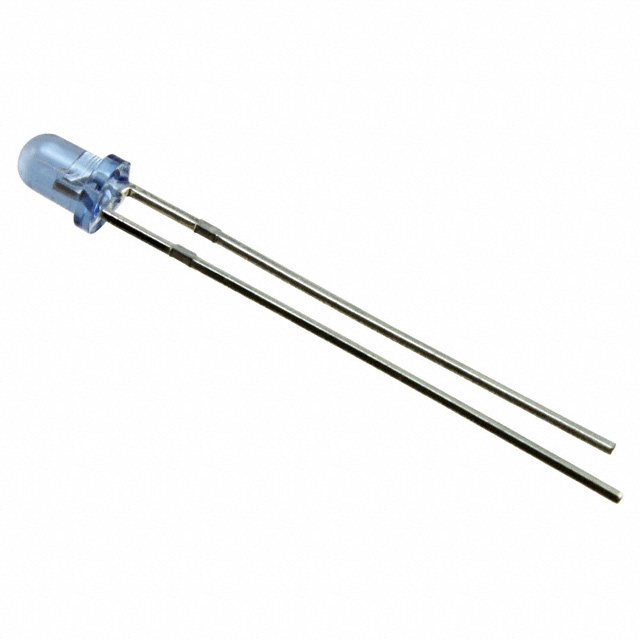

Infrared (IR) Emitter 940nm 1.2V 100mA 4mW/sr @ 20mA 50° Radial

Technical documentation and resources

No documents available
