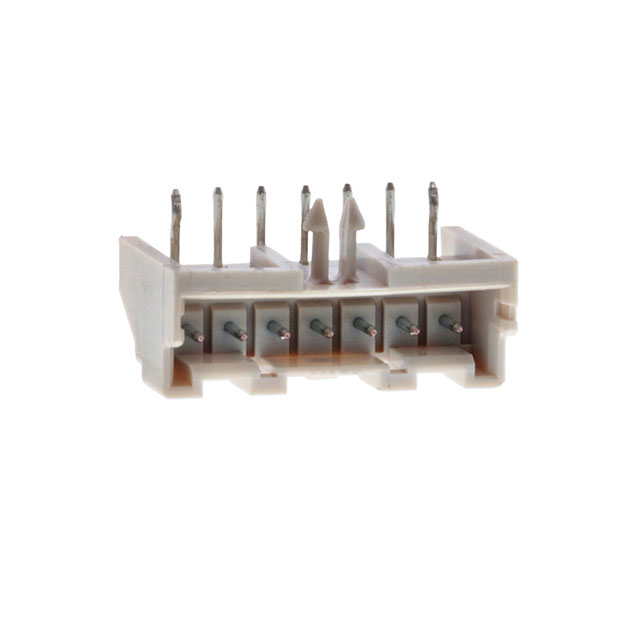

S07B-XASK-1

Active

JST Sales America Inc.

CONN HEADER R/A 7POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 7POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S07B-XASK-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Shrouding	Contact Finish - Post	Termination	Voltage Rating	Contact Type	Number of Rows	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Style	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Number of Positions	Contact Material	Contact Shape	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. S07B-XASS-1N-BN(LF)(SN)	Shrouded - 4 Wall	Tin	Solder	250 VDC	Male Pin	1	Locking Ramp	Natural	2.5 mm	0.098 in	Board to Cable/Wire	UL94 V-0	3 A	Through Hole Right Angle	7	Copper Alloy	Circular	Header	All	0.299 in	7.6 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	3.2 mm	0.126 in	-25 °C	85 °C
JST Sales America Inc. S07B-XASK-1	Shrouded - 4 Wall	Tin	Press-Fit Solder	250 VDC	Male Pin	1	Locking Ramp	Natural	2.5 mm	0.098 in	Board to Cable/Wire	UL94 V-0	3 A	Through Hole Right Angle	7	Copper Alloy	Circular	Header	All	0.299 in	7.6 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	3.2 mm	0.126 in	-25 °C	85 °C
