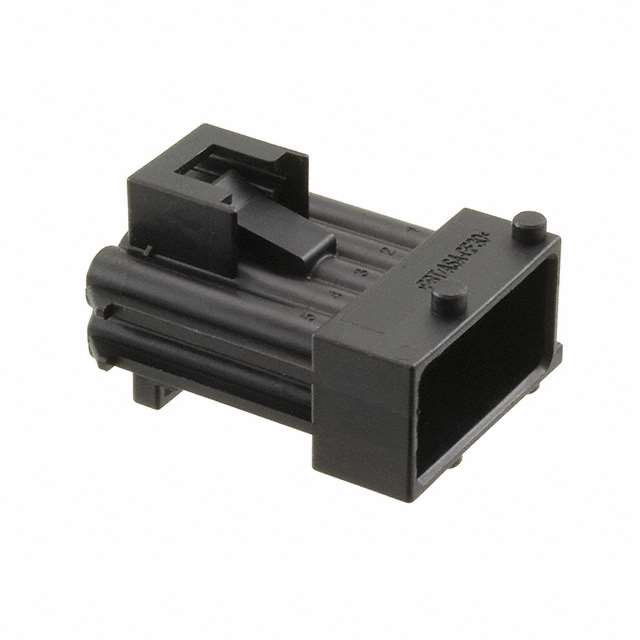

1-965423-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 10POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-965423-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 10POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-965423-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.26 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.89 | |||
| 3000 | $ 0.83 | |||
965423 Series
CONN PLUG HSG 10POS 5.00MM
| Part | Row Spacing [Max] | Row Spacing [Max] | Fastening Type | Insulation Material | Contact Type | Number of Positions | Connector Type | Pitch [x] | Pitch [x] | Number of Rows | Contact Termination | Note | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-965423-1 | 0.236 in | 6 mm | Latch Lock | Polybutylene Terephthalate (PBT), Glass Filled | Tab | 10 | Plug | 5 mm | 0.197 in | 2 | Crimp | Contacts Not Included | Black |
Description
General part information
965423 Series
10 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)
