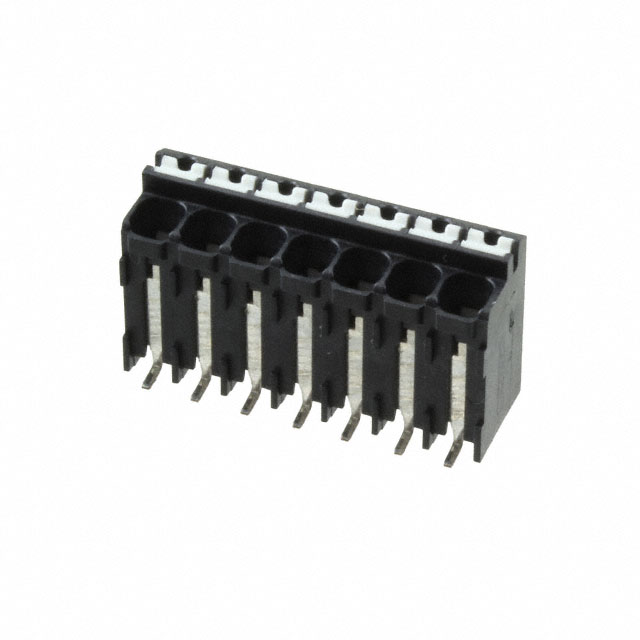

FIXED TERMINAL BLOCKS SPT-SMD 1,5/7-V-3,81 R44
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1824242
ActivePhoenix Contact
FIXED TERMINAL BLOCKS SPT-SMD 1,5/7-V-3,81 R44
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1824242 | SPT-SMD Series |
|---|---|---|
| Color | Black | Black |
| Contact Material - Plating [custom] | Tin Plated | Tin Plated |
| Current | 10 A | 10 A |
| Features | - | Board Guide |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mating Orientation | Vertical with Board | Horizontal with Board, Vertical with Board |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Levels | 1 | 1 |
| Pitch [x] | 0.15 in | 0.15 - 0.2 in |
| Pitch [x] | 3.81 mm | 3.81 - 5.08 mm |
| Positions Per Level | 7 | 7 - 12 |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring | Push-In Spring, Screwless - Leg Spring |
SPT-SMD Series
Fixed Terminal Blocks SPT-SMD 1,5/10-H-3,5 R72
| Part | Housing Material | Voltage | Wire Termination | Mounting Type | Features | Pitch [x] | Pitch [x] | Contact Material - Plating [custom] | Positions Per Level | Mating Orientation | Color | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1824844 | Liquid Crystal Polymer (LCP) | 300 V | Push-In Spring, Screwless - Leg Spring | Surface Mount | Board Guide | 5 mm | 0.197 in | Tin Plated | 12 | Horizontal with Board | Black | 16 AWG | 24 AWG | 1 | 10 A |
Phoenix Contact 1824514 | Liquid Crystal Polymer (LCP) | 300 V | Push-In Spring, Screwless - Leg Spring | Surface Mount | 5.08 mm | 0.2 in | Tin Plated | 12 | Vertical with Board | Black | 16 AWG | 24 AWG | 1 | 10 A | |
Phoenix Contact 1824242 | Liquid Crystal Polymer (LCP) | 300 V | Push-In Spring, Screwless - Leg Spring | Surface Mount | 3.81 mm | 0.15 in | Tin Plated | 7 | Vertical with Board | Black | 16 AWG | 24 AWG | 1 | 10 A |
