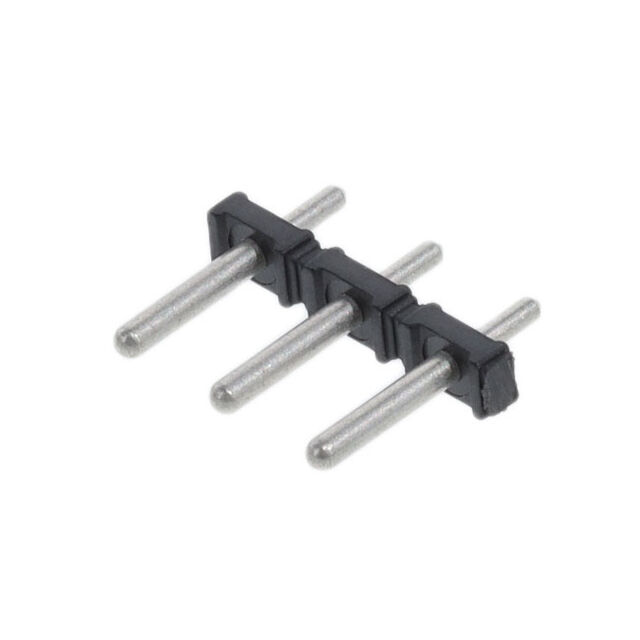

971-SLR-THR/03

Active

WECO Electrical Connectors Inc.

PIN STRIP HEADER 3 POLE; THROUGH

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

PIN STRIP HEADER 3 POLE; THROUGH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	971-SLR-THR/03	971-SLR Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Features	-	Pick and Place Cap
Header Orientation	Vertical	Vertical
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.07 in	0.07 in
Insulation Height	1.78 mm	1.78 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Levels	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	3	3
Termination Style	Solder	Solder
Type	Header, Male Pins, Unshrouded	Header, Male Pins, Unshrouded
Voltage - UL	300 V	300 V

PIN STRIP HEADER; 3 POLE SMT 5MM

Part	Contact Material	Contact Mating Finish	Header Orientation	Type	Housing Material	Pitch [x]	Pitch [x]	Number of Levels	Positions Per Level	Insulation Height	Insulation Height	Voltage - UL	Mounting Type	Features	Termination Style	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Color
WECO Electrical Connectors Inc. 971-SLR-SMD-1.1/03	Copper Alloy	Tin	Vertical	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	5 mm	0.197 in	1	3	0.07 in	1.78 mm	300 V	Surface Mount	Pick and Place Cap	Solder	UL94 V-0	-40 °C	105 ░C	10 A	Black
WECO Electrical Connectors Inc. 971-SLR-THR/03	Copper Alloy	Tin	Vertical	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	5 mm	0.197 in	1	3	0.07 in	1.78 mm	300 V	Through Hole		Solder	UL94 V-0	-40 °C	105 ░C	10 A	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole
