R113240000

Active

Radiall USA, Inc.

MCX / STRAIGHT JACK CRIMP TYPE C

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MCX / STRAIGHT JACK CRIMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R113240000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Voltage Rating	Frequency - Max [Max]	Number of Ports	Contact Termination	Cable Group	Mounting Type	Impedance	Body Finish	Fastening Type	Dielectric Material	Body Material	Connector Style	Connector Type	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Shield Termination	Mating Cycles	Center Contact Plating
Radiall USA, Inc. R113240000	335 V	6000 MHz	1	Crimp	188 316 RG-174	Free Hanging (In-Line)	50 Ohms	Gold	Snap-On	Polytetrafluoroethylene (PTFE)	Brass	MCX	Female Socket Jack	Gold	155 °C	-55 °C	Beryllium Copper	Crimp	500	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

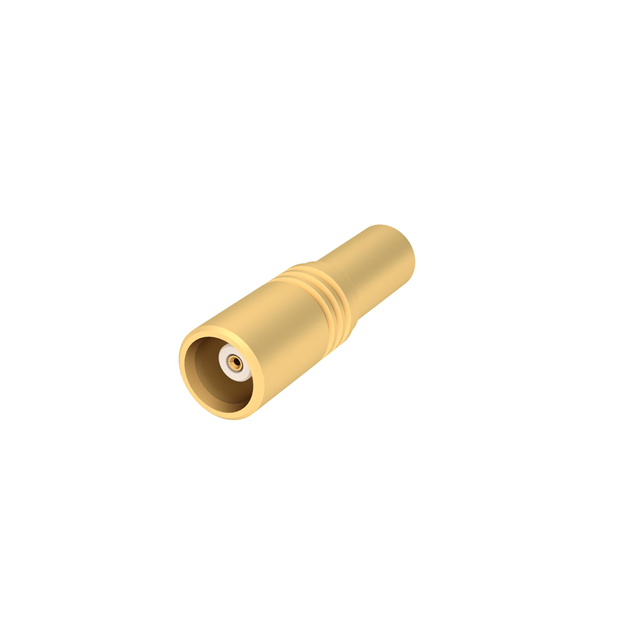

MCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
