826883-2

Active

TE Connectivity AMP Connectors

02P ECONOSEAL "E"

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

02P ECONOSEAL "E"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826883-2	826883 Series

Connector Type	Plug Housing	Plug Housing
Contact Shape	Circular	Circular
Contact Type	Crimp	Crimp
Fastening Type	Detent Lock	Detent Lock
Housing Color	Black	Black
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Shielding	Unshielded	Unshielded
Type	For Male Pins	For Male Pins

02P ECONOSEAL "E"

Part	Shielding	Mounting Type	Housing Color	Number of Positions	Note	Insert Material	Fastening Type	Primary Material	Orientation	Contact Shape	Contact Type	Type	Connector Type	Shell Material
TE Connectivity AMP Connectors 826883-2	Unshielded	Free Hanging (In-Line)	Black	2	Contacts Not Included	Glass Filled, Nylon 6/6, Polyamide (PA66)	Detent Lock	Plastic	Keyed	Circular	Crimp	For Male Pins	Plug Housing	Polyamide (PA66), Nylon 6/6, Glass Filled
TE Connectivity AMP Connectors 826883-1	Unshielded	Free Hanging (In-Line)	Black	2	Contacts Not Included		Detent Lock		Keyed	Circular	Crimp	For Male Pins	Plug Housing	Polyamide (PA66), Nylon 6/6, Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

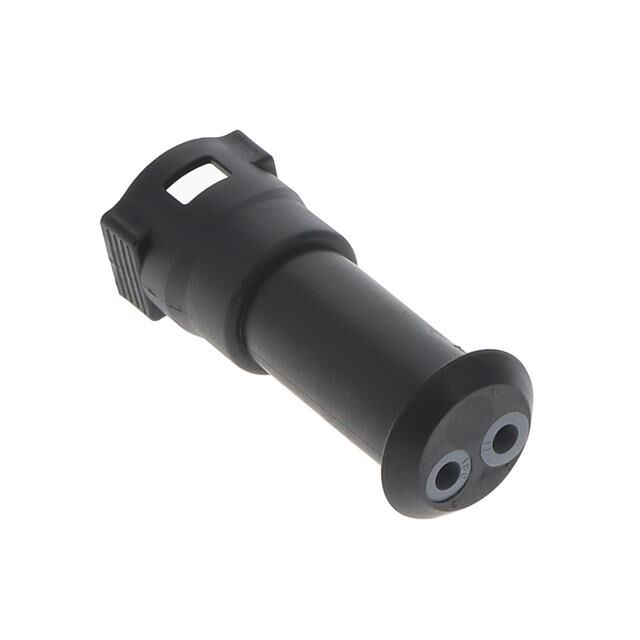

2 Position Circular Connector Plug Housing Free Hanging (In-Line)

Technical documentation and resources
