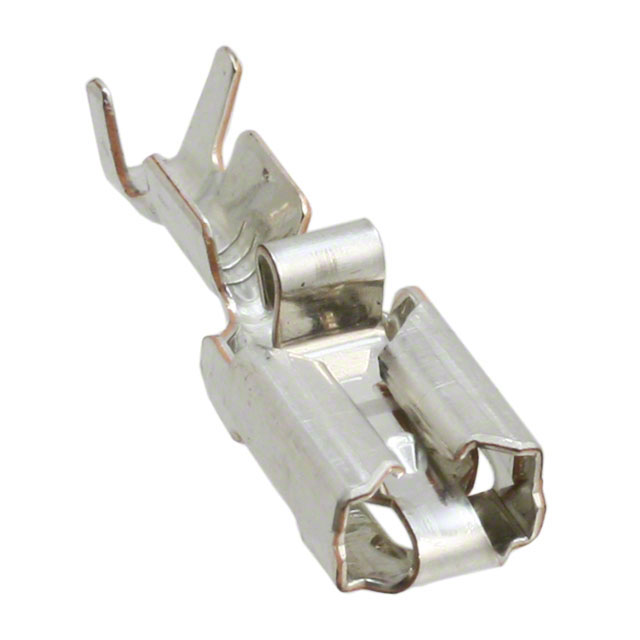

927854-8
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 13.5-17AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
927854-8
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 13.5-17AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 927854-8 | 927854 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Brass |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Length - Overall [x] | 0.878 in | 0.878 in |
| Length - Overall [x] | 22.3 mm | 22.3 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 17 AWG | 17 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
927854 Series
CONN QC RCPT 13.5-17AWG 0.250
| Part | Termination | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Insulation | Terminal Type | Gender | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 927854-8 | Crimp | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Non-Insulated | Standard | Female | Phosphor Bronze | 14 AWG | 17 AWG | Free Hanging (In-Line) | 0.878 in | 22.3 mm | Silver |
TE Connectivity AMP Connectors 927854-1 | Crimp | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Non-Insulated | Standard | Female | Brass | 14 AWG | 17 AWG | Free Hanging (In-Line) | 0.878 in | 22.3 mm | |
TE Connectivity AMP Connectors 927854-2 | Crimp | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Non-Insulated | Standard | Female | Phosphor Bronze | 14 AWG | 17 AWG | Free Hanging (In-Line) | 0.878 in | 22.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.55 | |||
| Tape & Reel (TR) | 1500 | $ 0.48 | ||
| 3000 | $ 0.45 | |||
| 7500 | $ 0.42 | |||
| 10500 | $ 0.40 | |||
Description
General part information
927854 Series
0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated
