DG160M-7

Active

Tri-Mag, LLC

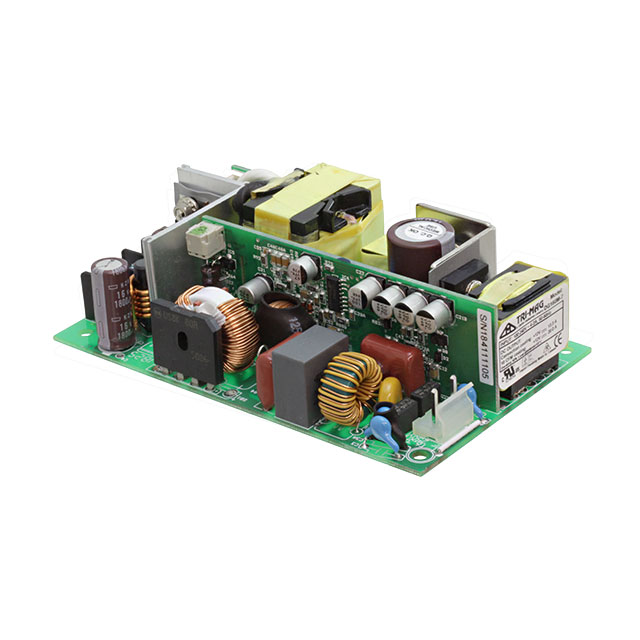

AC/DC CONVERTER 12V 160W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DG160M-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 160W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 80.90

Description

General part information

DG160 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DG160M-7	DG160 Series

Applications	Medical	ITE (Commercial), Medical
Approval Agency	CE, CB	CE, CB
Current - Output 1	13.3 A	3.35 - 13.3 A
Efficiency	90 %	90 - 91 %
Features	Standby Output, Universal Input, PFC	Standby Output, Universal Input, PFC
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 - 70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	160 W	160 W
Power (Watts)	240 W	240 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	36.1 mm	36.1 mm
Size / Dimension [z]	1.42 in	1.42 in
Type	Open Frame	Open Frame, Enclosed
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 48 V

DG160 Series

AC/DC CONVERTER 36V 160W

Part	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Features	Applications	Mounting Type	Type	Current - Output 1	Power (Watts)	Power (Watts)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Isolation
Tri-Mag, LLC DG160-J	91 %	-20 °C	70 °C	1	PFC, Standby Output, Universal Input	ITE (Commercial)	Chassis Mount	Open Frame	4.45 A	160 W	240 W	36 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in
Tri-Mag, LLC DG160-3	91 %	-20 °C	70 °C	1	PFC, Standby Output, Universal Input	ITE (Commercial)	Chassis Mount	Open Frame	8.9 A	160 W	240 W	18 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in
Tri-Mag, LLC DG160-14EU	91 %	-20 °C	70 °C	1	PFC, Standby Output, Universal Input	ITE (Commercial)	Chassis Mount	Open Frame	3.35 A	160 W	240 W	48 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in
Tri-Mag, LLC DG160-GEU	91 %	-20 °C	70 °C	1	PFC, Standby Output, Universal Input	ITE (Commercial)	Chassis Mount	Open Frame	5.7 A	160 W	240 W	28 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in
Tri-Mag, LLC DG160-JEC	91 %	-20 °C	70 °C	1	PFC, Standby Output, Universal Input	ITE (Commercial)	Chassis Mount	Enclosed	4.45 A	160 W	240 W	36 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in
Tri-Mag, LLC DG160M-9	90 %	-20 °C	65 °C	1	PFC, Standby Output, Universal Input	Medical	Chassis Mount	Open Frame	6.66 A	160 W	240 W	24 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	CB, CE	4000 V
Tri-Mag, LLC DG160M-7	90 %	-20 °C	65 °C	1	PFC, Standby Output, Universal Input	Medical	Chassis Mount	Open Frame	13.3 A	160 W	240 W	12 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	CB, CE	4000 V
Tri-Mag, LLC DG160-3EC	91 %	-20 °C	70 °C	1	PFC, Standby Output, Universal Input	ITE (Commercial)	Chassis Mount	Open Frame	8.9 A	160 W	240 W	18 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in
Tri-Mag, LLC DG160M-14EU	90 %	-20 °C	65 °C	1	PFC, Standby Output, Universal Input	Medical	Chassis Mount	Open Frame	3.35 A	160 W	240 W	48 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	CB, CE	4000 V
Tri-Mag, LLC DG160M-9EU	90 %	-20 °C	65 °C	1	PFC, Standby Output, Universal Input	Medical	Chassis Mount	Open Frame	6.66 A	160 W	240 W	24 V	90 VAC	264 VAC	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	CB, CE	4000 V
