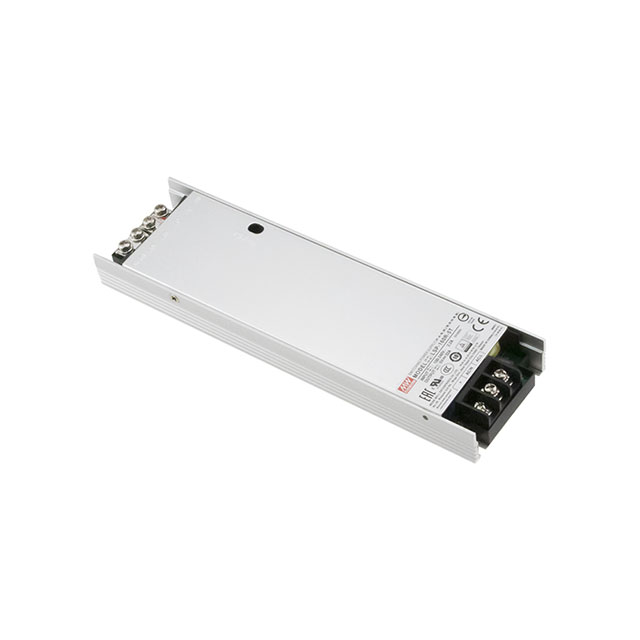

Specification	LSP-160-5T

Applications	ITE (Commercial)
Approval Agency	cURus, CCC, CE, TUV, CB, EAC
Current - Output 1	32 A
Efficiency	89.5 %
Features	PFC, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	160 W
Size / Dimension Height	0.79 in
Size / Dimension Length	7.64 in
Size / Dimension Width	2.17 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	100 VAC
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	141 VDC
Voltage - Isolation	3750 VDC
Voltage - Output 1	5 V

LSP-160 Series

Part	Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Number of Outputs	Applications	Voltage - Isolation	Power (Watts)	Efficiency	Approval Agency	Features	Voltage - Output 1	Current - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (DC) Maximum	Voltage - Input (AC) Minimum
MEAN WELL USA Inc. LSP-160R-5T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	160 W	89.5 %	CB CCC CE cURus EAC TUV	Adjustable Output DC Input Capable Load Sharing PFC	5 V	32 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-12T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	162 W	92.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	12 V	13.5 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-3.3T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	106 W	87.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	3.3 V	32 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160R-4.2T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	134 W	88.5 %	CB CCC CE cURus EAC TUV	Adjustable Output DC Input Capable Load Sharing PFC	4.2 V	32 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-48T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	163 W	93.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	48 V	3.4 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-4.2T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	134 W	88.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	4.2 V	32 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-36T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	162 W	93.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	36 V	4.5 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160R-3.3T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	106 W	87.5 %	CB CCC CE cURus EAC TUV	Adjustable Output DC Input Capable Load Sharing PFC	3.3 V	32 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-24T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	162 W	93.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	24 V	6.75 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC
MEAN WELL USA Inc. LSP-160-5T	Enclosed	70 °C	-30 °C	Chassis Mount	1	ITE (Commercial)	3750 VDC	160 W	89.5 %	CB CCC CE cURus EAC TUV	Adjustable Output PFC	5 V	32 A	2.17 in	7.64 in	0.79 in	141 VDC	264 V	370 V	100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LSP-160-5T | Datasheet
