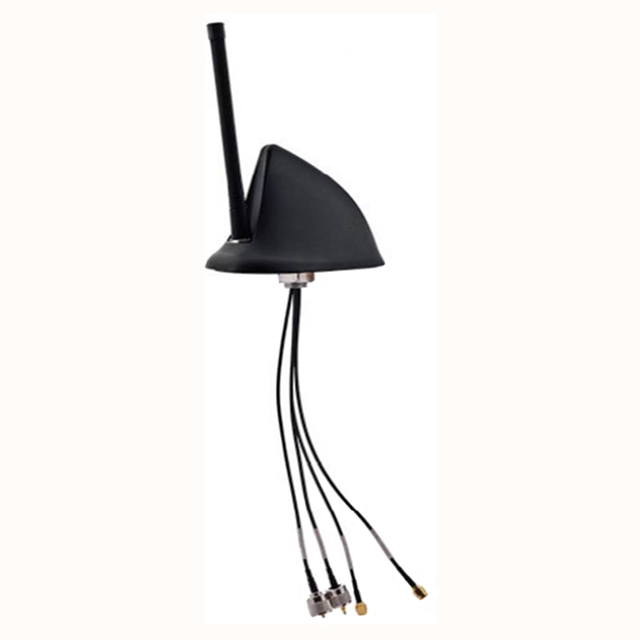

FHQ69273CD-518VC5

Obsolete

TE Connectivity Raychem Cable Protection

RF ANT 405/829MHZ MODULE RP-SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FHQ69273CD-518VC5

Obsolete

TE Connectivity Raychem Cable Protection

RF ANT 405/829MHZ MODULE RP-SMA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FHQ69273CD-518VC5

Antenna Type	Module
Applications	WLAN, GPS, LTE
Frequency (Center/Band)	829 MHz, 5.4 GHz, 405 MHz, 2.2 GHz
Frequency Group	Wide Band
Frequency Range [Max]	5.875 GHz, 960 MHz, 430 MHz, 2.7 GHz
Frequency Range [Min]	1.71 GHz, 380 MHz, 4.9 GHz, 698 MHz
Gain	7.8 dB
Height (Max) [Max]	160 mm
Height (Max) [Max]	6.299 in
Ingress Protection	IP67
Number of Bands	4
Power - Max [Max]	10 W
RF Family/Standard	Navigation, WiFi, Cellular
Termination	RP-SMA Male, SMA Male
VSWR	1.5

FHQ69273 Series

Part	Frequency (Center/Band)	RF Family/Standard	Number of Bands	Ingress Protection	Power - Max [Max]	VSWR	Applications	Frequency Range [Max]	Frequency Range [Min]	Gain	Height (Max) [Max]	Height (Max) [Max]	Antenna Type	Frequency Group	Termination
TE Connectivity Raychem Cable Protection FHQ69273CE-518VC3	2.2 GHz 5.4 GHz 475 MHz 829 MHz	Cellular Navigation WiFi	4	IP67	10 W	2	GPS LTE WLAN	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	8.2 dBi	160 mm	6.299 in	Module	Wide Band
TE Connectivity Raychem Cable Protection FHQ69273CE-518VC5	2.2 GHz 5.4 GHz 475 MHz 829 MHz	Cellular Navigation WiFi	4	IP67	10 W	2	GPS LTE WLAN	2.7 GHz 5.875 GHz 520 MHz 960 MHz	1.71 GHz 4.9 GHz 430 MHz 698 MHz	8.2 dBi	160 mm	6.299 in	Module	Wide Band	RP-SMA Male SMA Male
TE Connectivity Raychem Cable Protection FHQ69273CD-518VC4	2.2 GHz 5.4 GHz 405 MHz 829 MHz	Cellular Navigation WiFi	4	IP67	10 W	1.5	GPS LTE WLAN	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	7.8 dB	160 mm	6.299 in	Module	Wide Band	FME Male SMA Male
TE Connectivity Raychem Cable Protection FHQ69273CD-518VC3	2.2 GHz 5.4 GHz 405 MHz 829 MHz	Cellular Navigation WiFi	4	IP67	10 W	1.5	GPS LTE WLAN	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	7.8 dB	160 mm	6.299 in	Module	Wide Band
TE Connectivity Raychem Cable Protection FHQ69273CD-518VC6	2.2 GHz 5.4 GHz 405 MHz 829 MHz	Cellular Navigation WiFi	4	IP67	10 W	1.5	GPS LTE WLAN	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	7.8 dB	160 mm	6.299 in	Module	Wide Band	FME Male RP-SMA Male SMA Male
TE Connectivity Raychem Cable Protection FHQ69273CD-518VC5	2.2 GHz 5.4 GHz 405 MHz 829 MHz	Cellular Navigation WiFi	4	IP67	10 W	1.5	GPS LTE WLAN	2.7 GHz 5.875 GHz 430 MHz 960 MHz	1.71 GHz 4.9 GHz 380 MHz 698 MHz	7.8 dB	160 mm	6.299 in	Module	Wide Band	RP-SMA Male SMA Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FHQ69273 Series

RF ANTENNA GPS, LTE, WLAN Module RP-SMA Male, SMA Male Panel Mount
