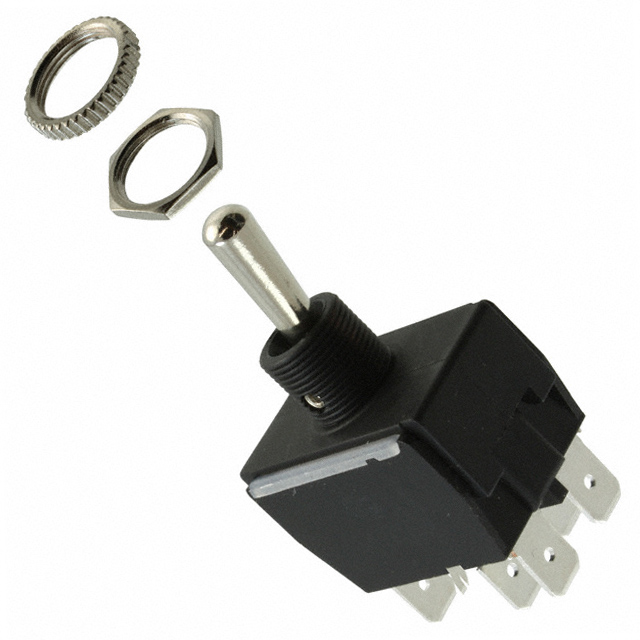

GTS448B101A1HR

Active

CW Industries

SWITCH TOGGLE DPDT 12A 250V

Search across all available documentation for this part.

Active

CW Industries

SWITCH TOGGLE DPDT 12A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GTS448B101A1HR	GTS448B Series

Actuator Length [x]	17.5 mm	17 - 17.5 mm
Actuator Type	Standard Round	Standard Round, Flatted
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	12 A	12 A
Electrical Life	10000 Cycles	10000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-On	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V	250 V

SWITCH TOGGLE DPDT 12A 250V

Part	Current Rating (Amps)	Ingress Protection	Actuator Length [x]	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Bushing Thread	Electrical Life	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Termination Style
CW Industries GTS448B101A1HR	12 A	IP56 - Dust Protected, Water Resistant	17.5 mm	Standard Round	250 V	12.2 mm	15/32-32	10000 Cycles	Non-Illuminated	0 °C	85 °C	On-On	DPDT	Quick Connect - 0.250" (6.3mm)
CW Industries GTS448B301AHR	12 A	IP56 - Dust Protected, Water Resistant	17 mm	Flatted	250 V	12.2 mm	15/32-32	10000 Cycles	Non-Illuminated	0 °C	85 °C	On-On	DPDT	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
