S6B-PH-SM4-TB
ActiveJST Sales America Inc.

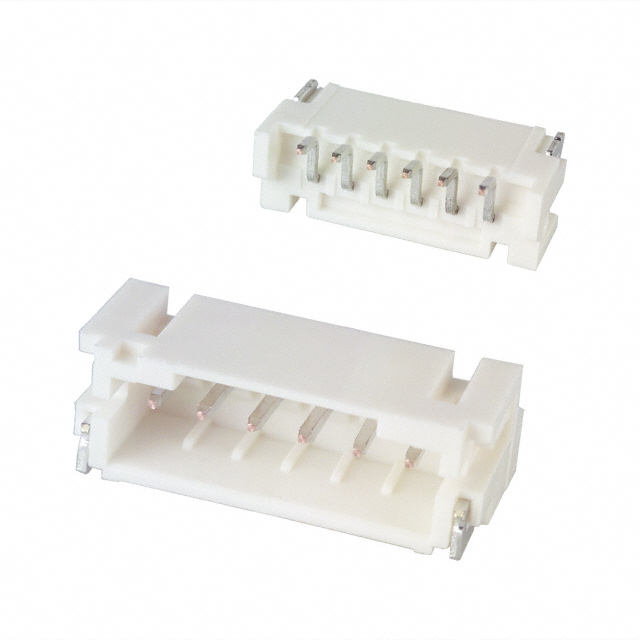

CONN HEADER SMD R/A 6POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
S6B-PH-SM4-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 6POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S6B-PH-SM4-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.13 in |
| Contact Length - Mating | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height [custom] | 5.51 mm |
| Insulation Height [custom] | 0.217 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.89 | |
| 10 | $ 0.75 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.55 | |||
| Digi-Reel® | 1 | $ 0.89 | ||
| 10 | $ 0.75 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.55 | |||
| Tape & Reel (TR) | 1000 | $ 0.49 | ||
| 2000 | $ 0.46 | |||
| 3000 | $ 0.44 | |||
| 5000 | $ 0.43 | |||
| 10000 | $ 0.41 | |||
| 25000 | $ 0.40 | |||
Description
General part information
S6B-PH-S Series
Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
