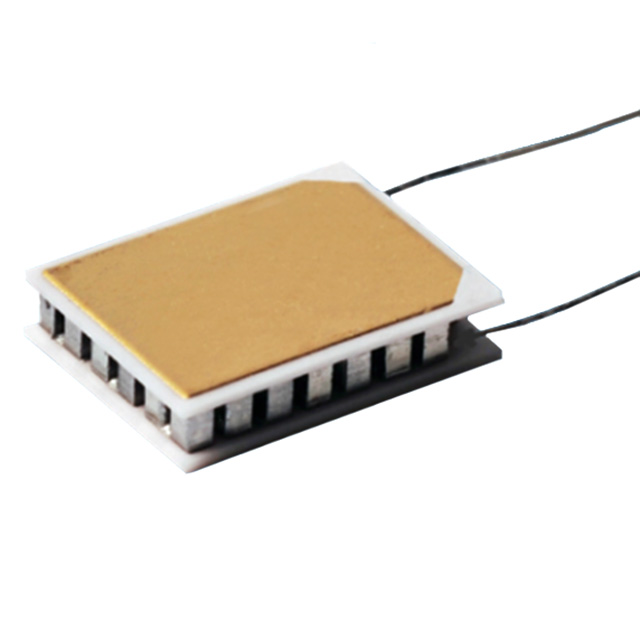

CM23-1.9-05AC

Active

Marlow Industries, Inc.

TEM 8.18X6.02X1.65MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 8.18X6.02X1.65MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 9.81

General part information

Peltier Module 3.4W @ 27°C 1.9 A 85°C

Technical documentation and resources

No documents available

Specification	CM23-1.9-05AC	CM23-1 Series

Current - Max [Max]	1.9 A	1.9 A
Delta Tmax @ Th	71 °C, 27 °C	27 - 71 °C
Features	-	Exterior Metallization (Both Sides), Lead Wires
Height [z]	1.65 mm	1.65 mm
Number of Stages	1	1
Qmax @ Th	3.4 W	3.4 W
Resistance	1.23 Ohms	1.23 Ohms
Size / Dimension [x]	8.18 mm	8.18 mm
Size / Dimension [y]	6.02 mm	6.02 mm
Voltage - Max [Max]	2.8 V	2.8 V

Part	Qmax @ Th	Resistance	Height [z]	Delta Tmax @ Th	Features	Voltage - Max [Max]	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]
Marlow Industries, Inc. CM23-1.9-01AC	3.4 W	1.23 Ohms	1.65 mm	27 °C, 71 °C	Exterior Metallization (Both Sides), Lead Wires	2.8 V	1	6.02 mm	8.18 mm	1.9 A
Marlow Industries, Inc. CM23-1.9-07AC	3.4 W	1.23 Ohms	1.65 mm	27 °C, 71 °C		2.8 V	1	6.02 mm	8.18 mm	1.9 A
Marlow Industries, Inc. CM23-1.9-04AC	3.4 W	1.23 Ohms	1.65 mm	27 °C, 71 °C		2.8 V	1	6.02 mm	8.18 mm	1.9 A
Marlow Industries, Inc. CM23-1.9-08AC	3.4 W	1.23 Ohms	1.65 mm	27 °C, 71 °C		2.8 V	1	6.02 mm	8.18 mm	1.9 A
Marlow Industries, Inc. CM23-1.9-05AC	3.4 W	1.23 Ohms	1.65 mm	27 °C, 71 °C		2.8 V	1	6.02 mm	8.18 mm	1.9 A
