14-4-028-0

Active

Igus

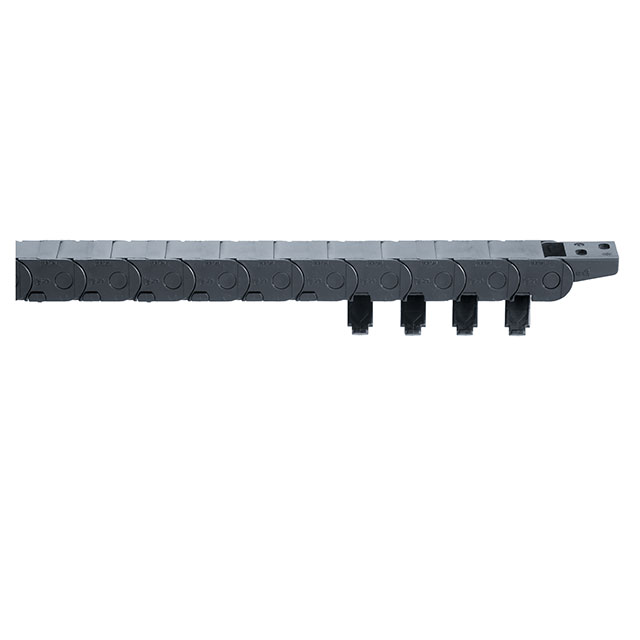

CABLE CARRIER .98H X 2.40W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .98H X 2.40W 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	14-4-028-0

Cavity Height [z]	20.07 mm
Cavity Height [z]	0.79 in
Cavity Width [y]	1.97 in
Cavity Width [y]	50.04 mm
Frame Type	Open
Link Pitch	1.2 in
Link Pitch	30.48 mm
Loading Side	Inside and Outside Bend
Material	Igumid G
Minimum Bend Radius	27.94 mm
Minimum Bend Radius [Min] [radius]	1.1 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Outer Height	0.98 in
Outer Height	24.89 mm
Outer Width [x]	2.4 in
Outer Width [x]	60.96 mm

CABLE CARRIER .98H X 2.40W 1=1FT

Part	Link Pitch	Link Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Loading Side	Outer Width [x]	Outer Width [x]	Frame Type	Minimum Bend Radius [Min] [radius]	Minimum Bend Radius	Outer Height	Outer Height	Material	Cavity Height [z]	Cavity Height [z]	Cavity Width [y]	Cavity Width [y]
Igus 14-4-028-0	1.2 in	30.48 mm	-40 °C	120 °C	Inside and Outside Bend	2.4 in	60.96 mm	Open	1.1 in	27.94 mm	0.98 in	24.89 mm	Igumid G	20.07 mm	0.79 in	1.97 in	50.04 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .98H X 2.40W 1=1FT
