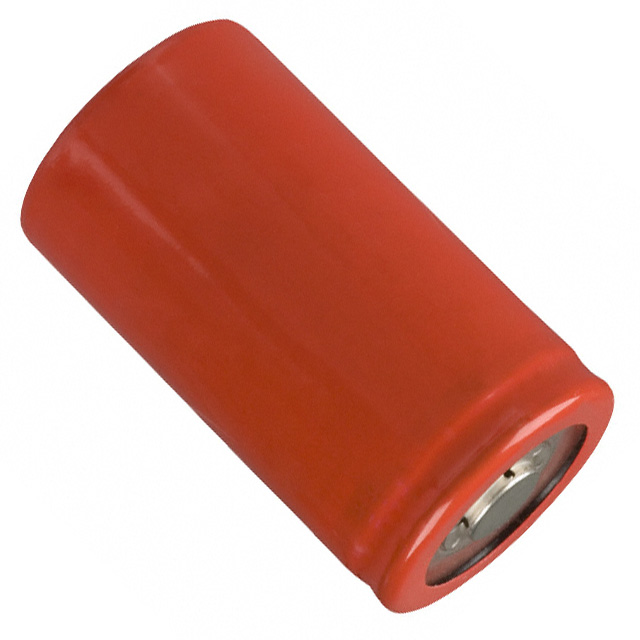

N-4000DRL
ObsoletePanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 4AH D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N-4000DRL
ObsoletePanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 4AH D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-4000DRL |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Nickel Cadmium |
| Capacity | 4 Ah |
| Discharge Rate | 800 mA |
| Size / Dimension [custom] | 2.31 " |
| Size / Dimension [custom] | 58.8 mm |
| Size / Dimension [diameter] | 32.6 mm |
| Size / Dimension [diameter] | 1.28 " |
| Standard Charge Current | 400 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 160.57 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N-4000 Series
D 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 4Ah
