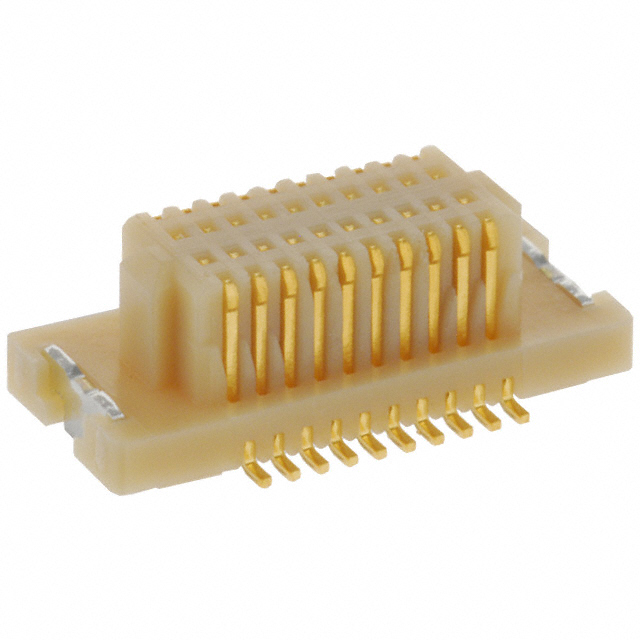

20R-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN RCPT 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
20R-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN RCPT 20POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20R-JMDSS-G-1-TF |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 3.1 mm |
| Height Above Board | 0.122 in |
| Mated Stacking Heights | 5 mm, 6 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
