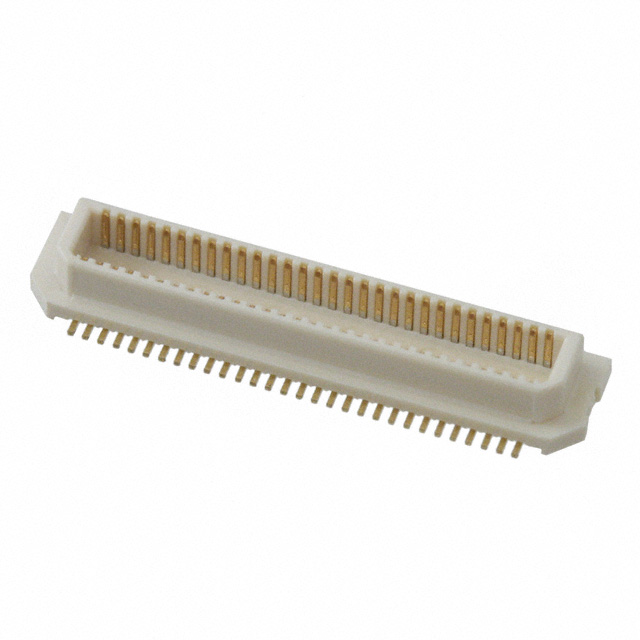

AXK680337YG
ActivePanasonic Electric Works
CONN HDR 80POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK680337YG
ActivePanasonic Electric Works
CONN HDR 80POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK680337YG |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board | 0.094 " |
| Height Above Board | 2.4 mm |
| Mated Stacking Heights | 3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.13 | |
| 10 | $ 3.16 | |||
| 25 | $ 2.85 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.21 | |||
| 500 | $ 2.06 | |||
| Digi-Reel® | 1 | $ 4.13 | ||
| 10 | $ 3.16 | |||
| 25 | $ 2.85 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.21 | |||
| 500 | $ 2.06 | |||
| Tape & Reel (TR) | 1500 | $ 1.88 | ||
| 3000 | $ 1.81 | |||
Description
General part information
AXK680337 Series
80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
