1424491
ActivePhoenix Contact

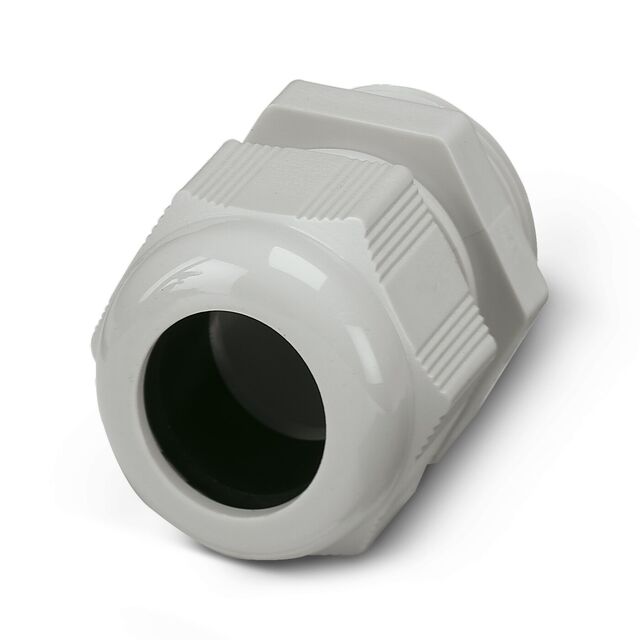

CABLE GLAND 18.01-25MM PG29
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1424491
ActivePhoenix Contact
CABLE GLAND 18.01-25MM PG29
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1424491 | G-INS-PG29 Series |
|---|---|---|
| Color | Gray | Silver, Black, Gray |
| Includes | Seal | O-Ring, Seal |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP66, IP68, IP69, IP68 - Dust Tight, Waterproof |
| Material | Polyamide (PA), Nylon | Brass, Nickel Plated, Polyamide (PA), Nylon |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outside Cable Diameter (Max) | 25 mm | 25 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.984 in | 0.984 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.709 in | 0.709 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 18.01 mm | 18.01 mm |
| Thread Length | 0.433 in | 0.315 - 0.433 in |
| Thread Length | 11 mm | 8 - 11 mm |
| Thread Size | PG29 | PG29 |
| Type | Cable Gland | Cable Gland |
G-INS-PG29 Series
CABLE GLND 18.01-25MM PG29 BRASS
| Part | Material | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) | Includes | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Thread Length | Thread Length | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Thread Size | Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1411176 | Brass, Nickel Plated | 0.984 in | 25 mm | O-Ring, Seal | IP66, IP68, IP69 | 100 °C | -40 °C | 8 mm | 0.315 in | 0.709 in | 18.01 mm | PG29 | Cable Gland | Silver |
Phoenix Contact 1424501 | Polyamide (PA), Nylon | 0.984 in | 25 mm | Seal | IP68 - Dust Tight, Waterproof | 100 °C | -40 °C | 11 mm | 0.433 in | 0.709 in | 18.01 mm | PG29 | Cable Gland | Black |
Phoenix Contact 1424491 | Polyamide (PA), Nylon | 0.984 in | 25 mm | Seal | IP68 - Dust Tight, Waterproof | 100 °C | -40 °C | 11 mm | 0.433 in | 0.709 in | 18.01 mm | PG29 | Cable Gland | Gray |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.03 | |
| 10 | $ 2.79 | |||
| 50 | $ 2.58 | |||
| 100 | $ 2.45 | |||
| 250 | $ 2.30 | |||
Description
General part information
G-INS-PG29 Series
Cable Gland Polyamide (PA), Nylon PG29 Gray
