PSS-03-01-T-S
ActiveSamtec Inc.

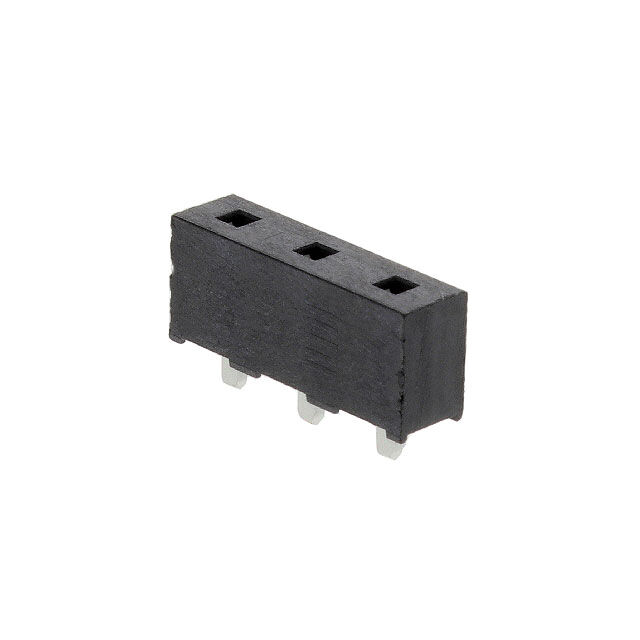

CONN RCPT 3POS 0.2 TIN PCB
Deep-Dive with AI
Search across all available documentation for this part.
PSS-03-01-T-S
ActiveSamtec Inc.
CONN RCPT 3POS 0.2 TIN PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSS-03-01-T-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.09 " |
| Contact Length - Post | 2.29 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.31 | |
| 10 | $ 1.12 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.81 | |||
| 5000 | $ 0.73 | |||
Description
General part information
PSS-03 Series
3 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin
