T38000-02-0
ActiveCurtis Industries

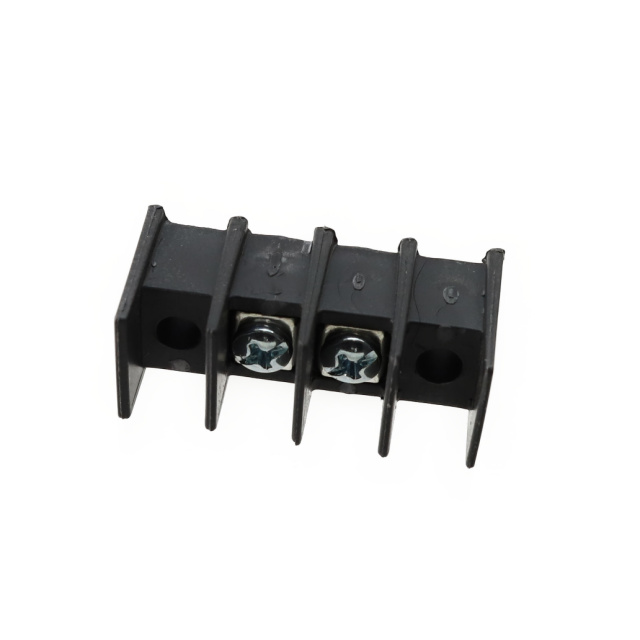

CONN BARRIER STRIP 2CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38000-02-0
ActiveCurtis Industries
CONN BARRIER STRIP 2CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T38000-02-0 | T38000 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Closed |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 2 | 2 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 2 | 2 - 26 |
| Number of Wire Entries | - | 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.26 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.68 | |||
T38000 Series
CONN BARRIER STRIP 5CIRC 0.375"
| Part | Current Rating (Amps) | Material Flammability Rating | Number of Rows | Top Termination | Material - Insulation | Bottom Termination | Barrier Type | Terminal Block Type | Pitch [x] | Pitch [x] | Operating Temperature | Features | Terminal Screw Material | Number of Circuits | Voltage Rating | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Screw Finish | Mounting Type | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries T38000-05-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 5 | 300 VDC | 5 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-10-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 10 | 300 VDC | 10 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-26-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 26 | 300 VDC | 26 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-16-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 16 | 300 VDC | 16 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-24-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 24 | 300 VDC | 12 AWG | 22 AWG | Nickel | Chassis, Panel | ||
Curtis Industries T38000-25-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 25 | 300 VDC | 25 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-07-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 7 | 300 VDC | 7 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-02-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 2 | 300 VDC | 2 | 12 AWG | 22 AWG | Nickel | Chassis, Panel | |
Curtis Industries T38000-23-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 23 | 300 VDC | 12 AWG | 22 AWG | Nickel | Chassis, Panel | 23 | |
Curtis Industries T38000-11-0 | 20 A | UL94 V-0 | 1 | Screws | Polypropylene (PP) | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | 105 C | Flange | Steel | 11 | 300 VDC | 11 | 12 AWG | 22 AWG | Nickel | Chassis, Panel |
Description
General part information
T38000 Series
2 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
No documents available
