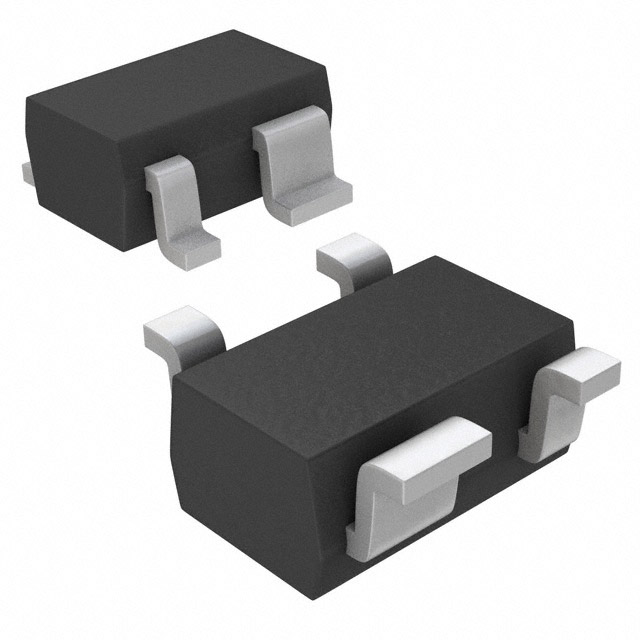

Specification	SR05

Applications	USB, Ethernet
Capacitance	6.5 pF
Current - Peak Pulse	25 A
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	TO-253AA, TO-253-4
Package Name	SOT-143
Power - Peak Pulse	500 W
Power Line Protection	Yes
Type	Zener
Unidirectional Channels	2
Voltage - Breakdown (Min)	6 V
Voltage - Clamping (Max)	20 V
Voltage - Reverse Standoff (Max)	5 V

SR05 Series

Part	Voltage - Reverse Standoff (Max)	Power Line Protection	Package / Case	Power - Peak Pulse	Voltage - Breakdown (Min)	Capacitance	Applications	Current - Peak Pulse	Type	Package Name	Voltage - Clamping (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Unidirectional Channels	Mounting Type
SMC Diode Solutions SR05	5 V	Yes	TO-253-4 TO-253AA	500 W	6 V	6.5 pF	Ethernet USB	25 A	Zener	SOT-143	20 V	-55 °C	125 °C	2	Surface Mount
