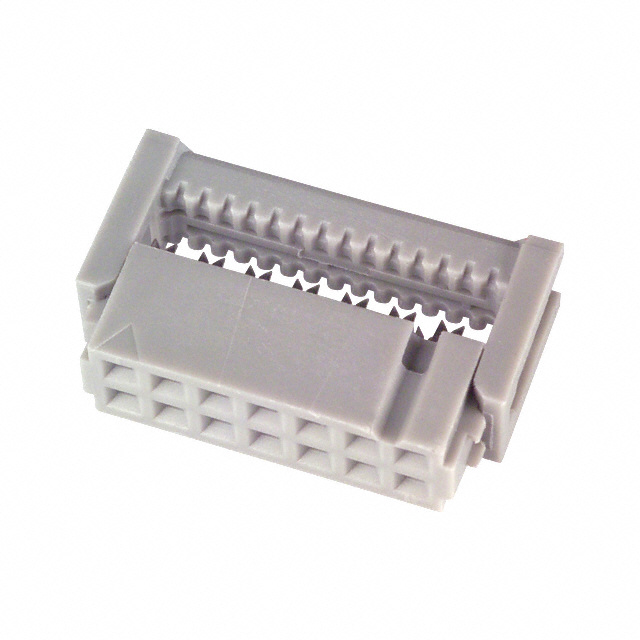

89114-0001
Active3M (TC)
CONN RCPT 14P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
89114-0001
Active3M (TC)
CONN RCPT 14P IDC 26-28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 89114-0001 |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Type | Female Socket |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.50 | |
| 10 | $ 1.30 | |||
| 25 | $ 1.25 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.05 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.83 | |||
| 2500 | $ 0.78 | |||
Description
General part information
89114 Series
14 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
