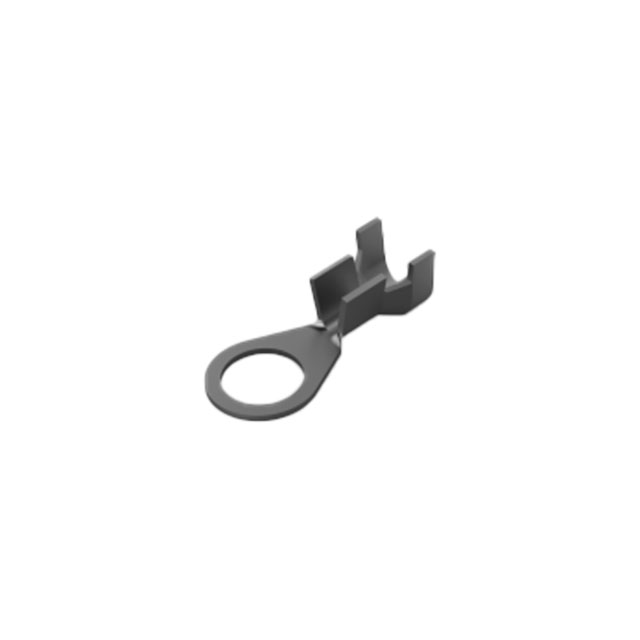

109452-6
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-18AWG #10
Deep-Dive with AI
Search across all available documentation for this part.
109452-6
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-18AWG #10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 109452-6 | 1094 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| Features | Serrated Termination | Serrated Termination |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 0.17 " | 0.17 " |
| Insulation Diameter [Max] [diameter] | 4.32 mm | 4.32 mm |
| Insulation Diameter [Min] [diameter] | 0.105 in | 0.105 in |
| Insulation Diameter [Min] [diameter] | 2.67 mm | 2.67 mm |
| Length - Overall [x] | 17.18 mm | 17.18 mm |
| Length - Overall [x] | 0.676 " | 0.676 " |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud | 10 Stud |
| Terminal Type | Circular | Circular |
| Termination | Crimp | Crimp |
| Thickness | 0.02 in | 0.02 - 0.03 in |
| Thickness | 0.51 mm | 0.51 - 0.76 mm |
| Width - Outer Edges [x] | 0.296 in | 0.296 in |
| Width - Outer Edges [x] | 7.52 mm | 7.52 mm |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25000 | $ 0.11 | |
1094 Series
CONN RING CIRC 14-16AWG #10
| Part | Terminal Type | Length - Overall [x] | Length - Overall [x] | Termination | Mounting Type | Contact Finish | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Stud/Tab Size | Insulation | Contact Material | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Wire Gauge [Min] | Wire Gauge [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 109451-6 | Circular | 17.18 mm | 0.676 " | Crimp | Free Hanging (In-Line) | Tin | 0.296 in | 7.52 mm | 0.03 in | 0.76 mm | 10 Stud | Non-Insulated | ||||||||
TE Connectivity AMP Connectors 109452-6 | Circular | 17.18 mm | 0.676 " | Crimp | Free Hanging (In-Line) | Tin | 0.296 in | 7.52 mm | 0.02 in | 0.51 mm | 10 Stud | Non-Insulated | Brass | 0.17 " | 0.105 in | 2.67 mm | 4.32 mm | 14 AWG | 18 AWG | Serrated Termination |
Description
General part information
1094 Series
Ring Terminal Connector 10 Stud Circular 14-18 AWG Crimp
