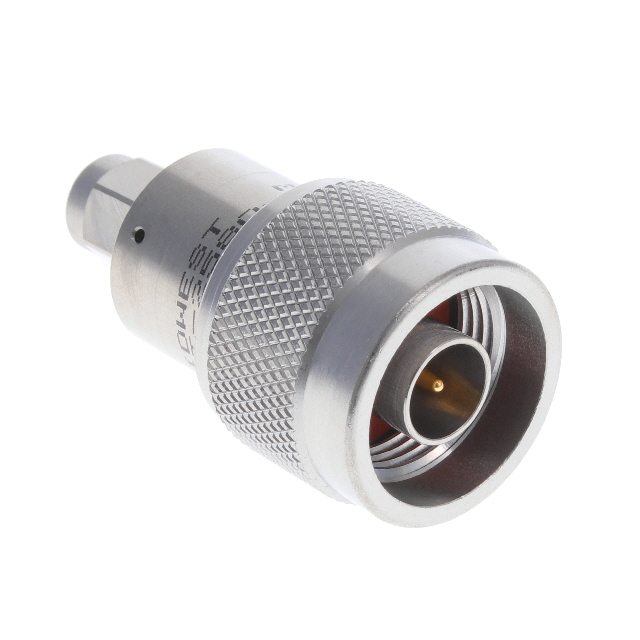

ADT-2580-NM-SMM-02

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT N PLUG TO SMA PLUG

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT N PLUG TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2580-NM-SMM-02

Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT N PLUG TO SMA PLUG

Part	Impedance	Body Material	Center Contact Plating	Adapter Type	Style	Frequency - Max [Max]	Center Contact Material	Convert To (Adapter End)	Dielectric Material	Convert From (Adapter End)	Center Gender	Mounting Type	Conversion Type
Cinch Connectivity Solutions Midwest Microwave ADT-2580-NM-SMM-02	50 Ohms	Stainless Steel	Gold	Plug to Plug	Straight	18 GHz	Beryllium Copper	Male Pin, SMA Plug	Polytetrafluoroethylene (PTFE)	N Plug, Male Pin	Male to Male	Free Hanging (In-Line)	Between Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
