ACZ11BR2E-20FD1-20CZ-0546

Active

CUI Devices

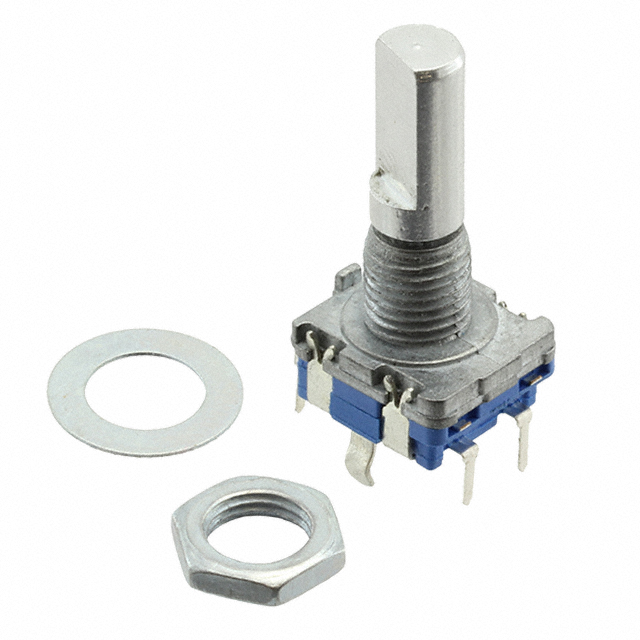

MECHANICAL ENCODER ROTARY INCREMENTAL FLAT 0.02N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 20PPR THROUGH HOLE PC PIN

Search across all available documentation for this part.

Active

CUI Devices

MECHANICAL ENCODER ROTARY INCREMENTAL FLAT 0.02N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 20PPR THROUGH HOLE PC PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACZ11BR2E-20FD1-20CZ-0546

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	False
Detent	True
Encoder Type	Incremental
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	20
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

MECHANICAL ENCODER ROTARY INCREMENTAL FLAT 0.02N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 20PPR THROUGH HOLE PC PIN

Part	Termination Style	Output Type	Rotational Life (Cycles Min) [Min]	Encoder Type	Detent	Built in Switch	Actuator Type [diameter]	Actuator Type	Mounting Type	Pulses per Revolution	Orientation
CUI Devices ACZ11BR2E-20FD1-20CZ-0546	PC Pin	Quadrature (Incremental)	30K	Incremental			6 mm	Flatted End	Panel, PCB Through Hole	20	Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Incremental 20 Quadrature (Incremental) Vertical
