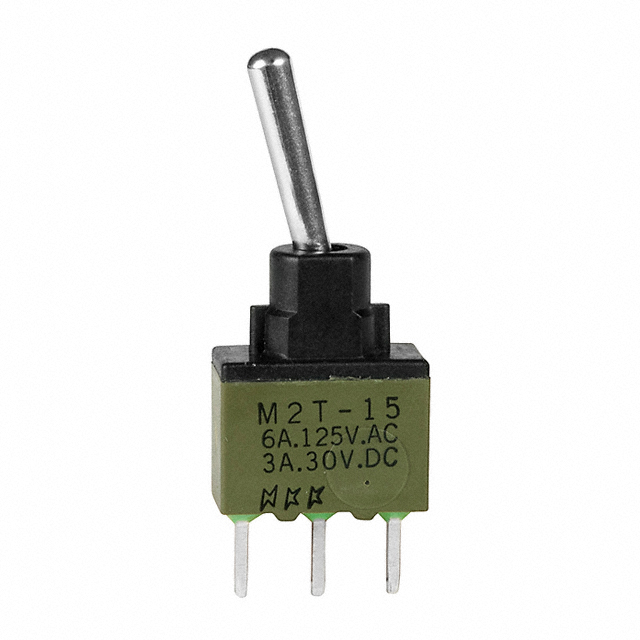

M2T15SA5W03

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Features	Actuator Material	Voltage Rating - AC	Illumination	Bushing Thread	Voltage Rating - DC	Circuit	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Electrical Life	Mounting Type	Actuator Length [x]
NKK Switches M2T15SA5G30	Standard Round	Process Sealed	Brass Nickel Plated	28 V	Non-Illuminated	Unthreaded	28 V	SPDT	On-Mom	0.4 VA	-30 ░C	85 °C	PC Pin	50000 Cycles	Through Hole Right Angle	0.5 in
NKK Switches M2T15SA5A03	Standard Round	Process Sealed	Brass Nickel Plated	125 V	Non-Illuminated	Unthreaded	30 V	SPDT	On-Mom	3 A 6 A	-30 ░C	85 °C	PC Pin	25000 Steps	Through Hole	0.5 in
NKK Switches M2T15SA5G13	Standard Round	Process Sealed	Brass Nickel Plated	28 V	Non-Illuminated	Unthreaded	28 V	SPDT	On-Mom	0.4 VA	-30 ░C	85 °C	PC Pin	50000 Cycles	Through Hole	0.5 in
NKK Switches M2T15SA5W03	Standard Round	Process Sealed	Brass Nickel Plated	125 V	Non-Illuminated	Unthreaded	30 V	SPDT	On-Mom	3 A 6 A	-30 ░C	85 °C	PC Pin	25000 Steps	Through Hole	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole
