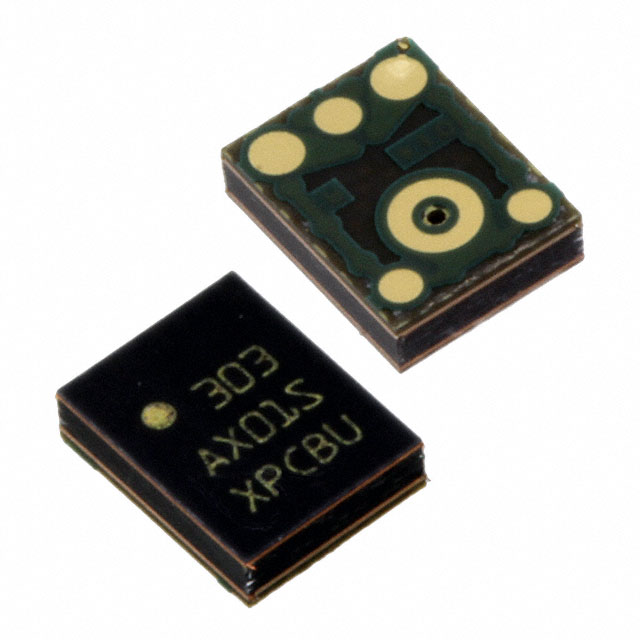

MP33AB01HTR
ObsoleteSTMicroelectronics
MIC MEMS ANALOG OMNI -38DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP33AB01HTR
ObsoleteSTMicroelectronics
MIC MEMS ANALOG OMNI -38DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP33AB01HTR |
|---|---|
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 66 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.76 mm |
| Size / Dimension [y] | 2.95 mm |
| Size / Dimension [y] | 0.116 " |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2.2 V |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MP33 Series
100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.6 V Omnidirectional (-38dB ±3dB @ 94dB SPL) Solder Pads
